Shure BLX14R Rack-Mount Guitar/ Bass Wireless System

Shure BLX14R Rack-Mount Guitar/ Bass Wireless System

Shure BLX14R Rack-Mount Guitar/ Bass Wireless System - Frequency Band M17

Due to government regulations some wireless products will not work in certain areas. If you are unsure whether a product will work in your area, please purchase a digital wireless system (which should work in almost all areas) or contact us for more information.

This product works on the M17 frequency band.

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

Made for Guitar and Bass players, this bodypack wireless system includes WA302, a cable for instruments that is 2.5 foot long with 4 Pin Mini Connector (TA4F) to 1/4-inch Connector. The BLX1 has upto 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius. The BLX4R is a rack-mountable receiver with removable antennas for quick distribution.

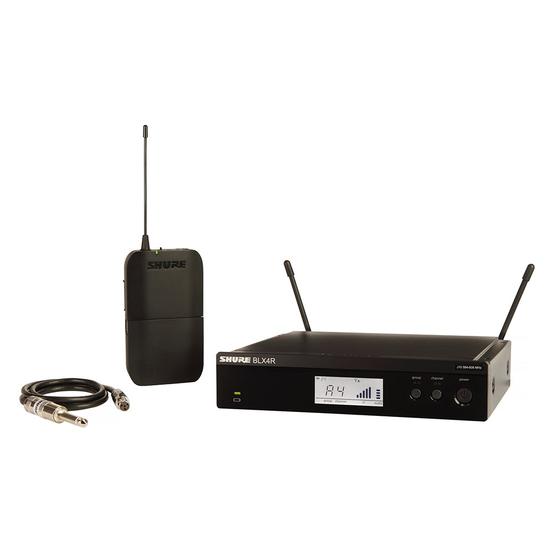

Package Includes

  • BLX1 bodypack transmitter
  • BLX4R rack mount receiver
  • Guitar cable
  • Single and dual rackmount kit
  • Two 1/4 wave antennas
  • Zipper bag, power supply
  • 2 AA batteries
  • User guide
  • For Guitar & Bass Players
  • WA302 Instrument Cable
  • Lightweight Bodypack Transmitter
  • Single-Channel Rackmount Receiver
  • 123 Auto-Scan Frequencies
  • Two Removable Antennas with Diversity
  • Adjustable Output Level
  • Rugged Metal Construction
  • 14-Hr AA Batteries
  • Expandable to 12 Mic Channels/300' Range
Wireless Technology Analog UHF
Number of RF Channels 123
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band H9:
512 to 542 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 12
Dynamic Range 100 dBA
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
-20.5 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4" Output:
50 Ohms
Approximate RF Sensitivity -105 dBm
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Included Cable Connector 1/4" TS
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
