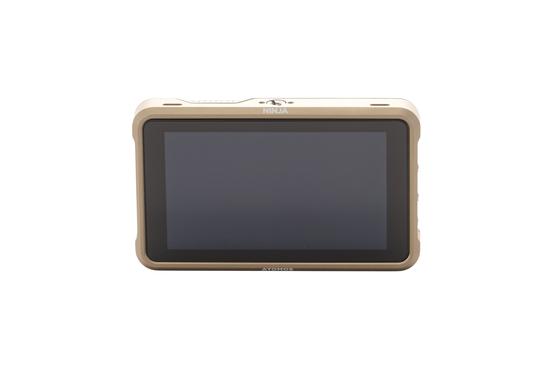

4 ⭐⭐⭐⭐ This Atomos Ninja has been thoroughly tested and serviced by our experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual video monitor, ensuring transparency and trust in our process. Includes: USB-C PD to 2.1mm DC Power Cable, battery eliminator and original packaging.
With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja is a 5.2" on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 6K with compatible cameras. The Ninja retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.
Whether you're a seasoned filmmaker, on-the-go content creator, or next-gen gamer, the Ninja with AtomOS 11 is built to fit seamlessly into your workflow—making professional-grade monitoring and recording more intuitive and powerful than ever.
The latest AtomOS 11 brings a fresh, streamlined interface and a powerful set of tools designed to help you focus on the shot—not the settings. Key features include:
Focus Peaking, Zoom, Safe Areas
Atomos & ARRI False Color, EL Zone exposure tools
SegmentPro, Cine Guides, RecordAssist & PlayBackAssist
Plus, the AtomHDR engine lets you preview Log footage in real time with HLG and PQ conversion—so you always know exactly what you’re capturing.
The stunning 5.2” 1920 x 1080 IPS display delivers ultra-bright 1000 cd/m² visibility—even in direct sunlight. With 10-bit color processing and Rec.709 support, your footage is color-accurate and ready for grading. Want perfect calibration? It supports Calibrite ColorChecker Display Pro/Plus too.
Working with Log? The Ninja supports log formats from Sony, ARRI, RED, FUJIFILM, Panasonic, Canon, and more. Load your own 3D LUTs, preview in HDR, or output to Dolby Vision, PQ, or HLG—tailor your workflow exactly how you want it.
With HDMI input/output supporting up to DCI 4K at 60 fps, you're covered for high-end monitoring, playback, and recording. Capture up to 6K RAW at 30 fps from over 55 supported cameras—or 3.5K RAW at 60 fps with select models. This is professional-grade power, right in your hands.
Gamers, take note: the Ninja doubles as a standalone UHD 4K HDR capture system. Record, monitor, and instantly review high-frame-rate gameplay—perfect for streaming, posting, or just flexing your best plays.
Pair your Ninja with the Atomos CONNECT module to unlock cloud workflows like Camera to Cloud (C2C), RemoteView, and Atomos Edit. You'll also gain:
12G-SDI connectivity
Wi-Fi 6 & Gigabit Ethernet
NDI support & RTMP streaming
AirGlu wireless timecode
HDMI <-> SDI conversion
Need to switch between multiple sources? Add the AtomX CAST to transform your Ninja into a full production studio. Switch between four 1080p HDMI feeds, add graphic overlays, and output via USB UVC for web conferencing or live streaming—all from one device.
Record directly to Atomos Master Caddy II/III SSDs, or go ultra-compact with AtomX SSDmini or CFast II cards (with adapter). It's all about flexibility—use what works for your shoot.
Stay powered your way:
L-series battery support (5.8V–7.2V)
30W USB-C PD (cable included)
Dummy eliminator for DC power
Touchscreen? Of course. But also:
Multifunction control buttons
Auto HDMI camera trigger (Canon & Sony)
Optional Bluetooth & RF remote control (via CONNECT)
LANC control & calibration via USB-C to serial
| Panel Type | IPS-Type LCD |
|---|---|
| Display Size | 5.2" / 13.2 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1000 nits / cd/m2 |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 427 ppi |
| Real-Time LUT Monitoring | HDR |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output |
|---|---|
| HDCP Support | No |
| Embedded Audio | HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel Input |
| Other I/O | 1 x USB-C |
| Media/Memory Card Slot | None |
| File System Support | exFAT |
| Wi-Fi | None |
| Bluetooth | None |
| Video Format | HDMI (8/10/16-Bit 4:2:2) 6K Raw: 30 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 |
|---|---|
| Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3 |
| Timecode Support | Yes |
| Pulldown Conversion | 2:2, 3:2 |
|---|---|
| Camera Trigger | HDMI |
| Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
| Encoding Formats | x DNxHR DNxHD ProRes |
| Maximum Audio Tracks | 8 |
| Reference Input | None |
| Phantom Power | None |
| DC Input Power | 6.2 to 16.8 VDC |
|---|---|
| Built-In Battery | None |
| Battery Type | 1 x L-Series |
| Power Consumption | 30 W |
| Mounting | 1 x ARRI Anti-Twist 1/4"-20 2 x 3/8"-16 Female |
|---|
| Operating Temperature | 104°F / 40°C |
|---|
| Material of Construction | Aluminum, Plastic |
|---|---|
| Dimensions | 5.9 x 3.6 x 1.2" / 15.1 x 9.15 x 3.1 cm |
| Weight | 12.7 oz / 360 g |
