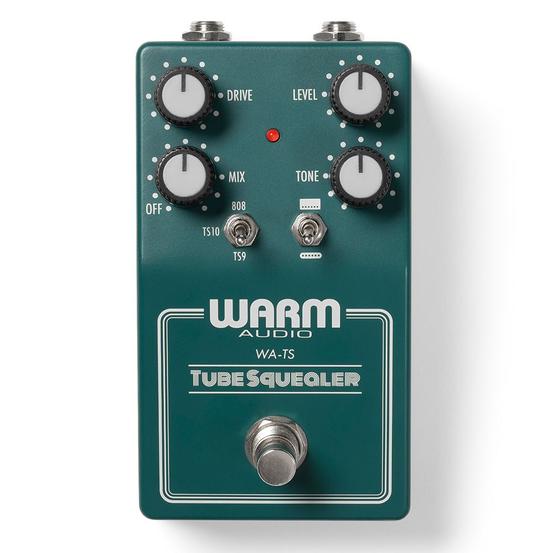

Warm Audio Tube Squealer Three-Mode Soft-Clipping Tube Amp-Driving Overdrive Pedal

Warm Audio Tube Squealer Three-Mode Soft-Clipping Tube Amp-Driving Overdrive Pedal

Warm Audio Tube Squealer Three-Mode Soft-Clipping Tube Amp-Driving Overdrive Pedal - Warm Audio

The Tube Squealer recreates three of the most iconic overdrives ever made, delivering legendary tube‐driven tone with modern flexibility. Players can switch between authentic 808, TS9, and TS10 circuits, each capturing the character of the original Japanese designs that defined generations of guitar sound. Enhanced features include a mix knob for blending clean and driven tones, a pickup‐voicing selector for humbuckers or single‐coils, and an external voltage booster for added headroom. Built with premium analog components and selectable true/buffered bypass, every unit is hand‐tested in Austin, TX to ensure exceptional tonal quality and reliability.

  • Faithful recreation of three classic overdrives with added rig‐ready features
  • Three‐mode soft‐clipping overdrive with Mix knob, Pickup Voicing selector, Voltage Booster, and True/Buffered bypass
  • Controls: Level, Drive, Tone, Mix, Pickup Voicing selector, Circuit Selector, Voltage Boost, and Bypass Selector
  • Components: 2× ICs (including JRC4558 op‐amps), 3× transistors, 2× JFETs, 4× diodes, switch‐cap voltage doubler supply
  • Power consumption: 12 mA (standard) / 25 mA (boosted)
  • Input sensitivity: 500 kΩ
  • Max output level: +2.1 dBu @9V / +9 dBu @18V
  • Connections: 1/4″ input & output, 9V centre‐negative power
