Yamaha FGX820C

It All Starts Here

Derived from FG820 which has the solid spruce top and mahogany back/sides, FGX820C has a cutaway body and the electric system. Yamaha's proprietary under-saddle piezo pickup and System66 analog preamp ensure the solid plugged-in performance.

Yamaha FGX820C

Yamaha FGX820C

4 ⭐⭐⭐⭐ This Yamaha FGX820C has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual guitar, ensuring transparency and trust in our process. Notes: No Case Orientation: Right

  • Traditional Western Body
  • Solid Spruce Top
  • Mahogany Back & Sides
  • Newly Developed Scalloped Bracing
  • Warm and Strong Sound

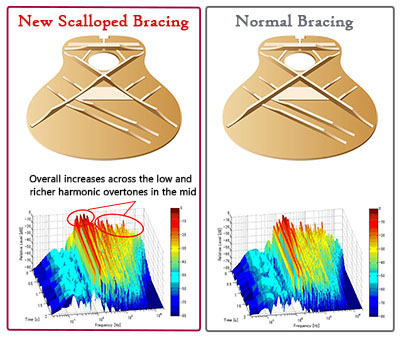

Newly Developed Scalloped Bracing

A new FG has louder and stronger sound in the low- to mid-ranges, thanks to cutting-edge acoustic analysis technology developed by the Yamaha R&D Division.
Yamaha’s engineers have achieved this sound by utilizing analysis and simulation to arrive at the best bracing design without depending on tradition or guesswork.
This analysis led to the development of the new scalloped bracing pattern, a new and ideal acoustic structure that maintains the durability of the top board while bringing out the most sound the Yamaha FG has to offer.

50 Years of History

The history of Yamaha‘s FG series started in 1966 with the release of the FG180 and FG150. Over the 50 years since its introduction, we have developed and produced several generations of FG - all of which have made FG the ideal acoustic for contemporary players.
In all, there have been over 200 FG models since 1966.

Made in Yamaha

Every aspect of an FG is crafted to make a better guitar. From painstakingly cured and dried woods to beautiful hand-sprayed finishes and detailed quality control checks each and every FG is made to be a lifelong partner.

Mahogany Back & Sides

Rich midrange
Warm and strong sound
Quick response

Electric System

System 66 feature an under-saddle piezo pickup developed by Yamaha. Controls include a 3-band EQ, an adjustable mid-range frequency control, and a precision chromatic tuner for optimum sound tailoring. The system is powered by easy to obtain AA-size batteries that provide a stable power supply for improved sound quality.

General Specifications

Body Shape Traditional Western Cutaway
Scale Length 650mm (25 9/16”)
Body Length 505mm (19 7/8")
Total Length 1038mm (40 7/8")
Body Width 412mm (16 1/4")
Body Depth 100-118mm (3 15/16”- 4 5/8”)
Nut Width 43mm (1 11/16”)
String Spacing * 11.0mm
Top Material Solid Spruce
Back Material Mahogany
Side Material Mahogany
Neck Material Nato
Fingerboard Material Rosewood
Fingerboard Radius R400mm (23 5/8")
Bridge Material Rosewood
Nut Material Urea
Saddle Material Urea
Bridge Pins Black ABS with White Dot
Tuners Die-cast Chrome(TM29T)
Body Binding Cream
Soundhole Inlay Black + White
Pickguard Tortoise Pattern (Black for BL color variation)
Body Finish Gloss
Neck Finish Matt
Electronics SYSTEM66 + SRT Piezo Pickup
Controls Vol/3-band EQ/Tuner/Mid FQ
Connections LINE OUT
Strings Yamaha FS50BT or D'Addario EXP11
Accessories Hex Wrench, 2 x AA Batteries
Case None

* Measured from the center of one bridge pin to the center of the next bridge pin
