Event Lighting PANX22 LED COB Pixel Panel w/ 2 x 2 40w RGB+VW LEDs

Event Lighting PANX22 LED COB Pixel Panel w/ 2 x 2 40w RGB+VW LEDs

Event Lighting PANX22 LED COB Pixel Panel w/ 2 x 2 40w RGB+VW LEDs - Lighting PANX22 LED COB Pixel Panel w/ 2 x 2 40w RGB+VW LEDs

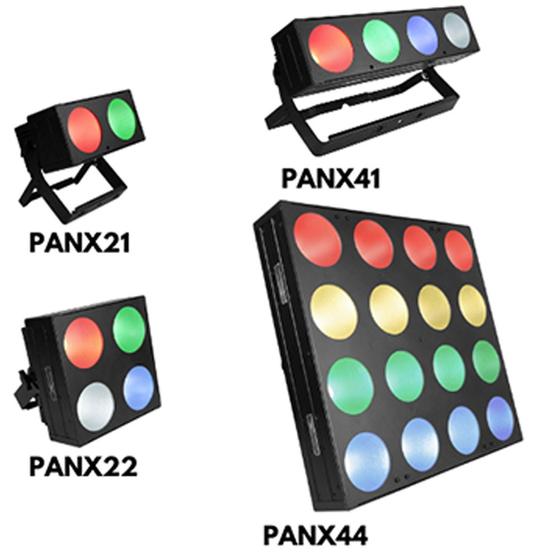

Event Lighting has just unveiled its exciting new PANX series of LED pan bars, offering a range of options for diverse lighting needs.

The PANX22 doubles the output with four 40W LEDs in a 2x2 array.

This versatile fixture share several key features, including a 40° beam angle, 60° field angle, and smooth 16-bit dimming with five selectable curves. This model offer a strobe effect (1-25Hz), multiple operational modes (DMX, manual, auto, sound active, master/slave, multi fixture chase), and an LCD control panel. It also support software upgrades via DMX. The PANX22 is passively cooled for silent operation.

Is housed in durable, matte black aluminium housing and include coffin latch to easily connect multiple PANX models and omega brackets for easy rigging. The PANX22 is also built with True1 power connections and 5 pin DMX Connections making it easy to add into your existing setup. DMX channel modes vary across the models to allow for individual pixel control, offering flexibility for different control needs.

Features

  • Equipped with four 40W RGB+VW LEDs in a 2x2 configuration for enhanced brightness and vibrant colours
  • Delivers impressive light output with a 40° beam angle and a 60° field angle, perfect for various event settings
  • Features 16-bit dimming with five selectable curves for precise and smooth lighting adjustments
  • Capable of producing a strobe effect with frequencies ranging from 1 to 25Hz for dynamic lighting displays
  • Offers DMX, manual, auto, sound active, master/slave, and multi-fixture chase modes for versatile performance
  • Includes an intuitive LCD control panel for easy setup and operation
  • Supports software updates via DMX for continued performance enhancements
  • Passively cooled for noise-free operation, ideal for noise-sensitive environments
  • Housed in a tough, matte black aluminium casing for reliability and a sleek, professional look
  • Includes coffin latches for quick linking of multiple PANX models and omega brackets for easy rigging
  • Features True1 power connections and 5-pin DMX connections for seamless integration into existing lighting setups
  • Offers varying DMX channel modes across models, allowing for individual pixel control to meet different creative needs
