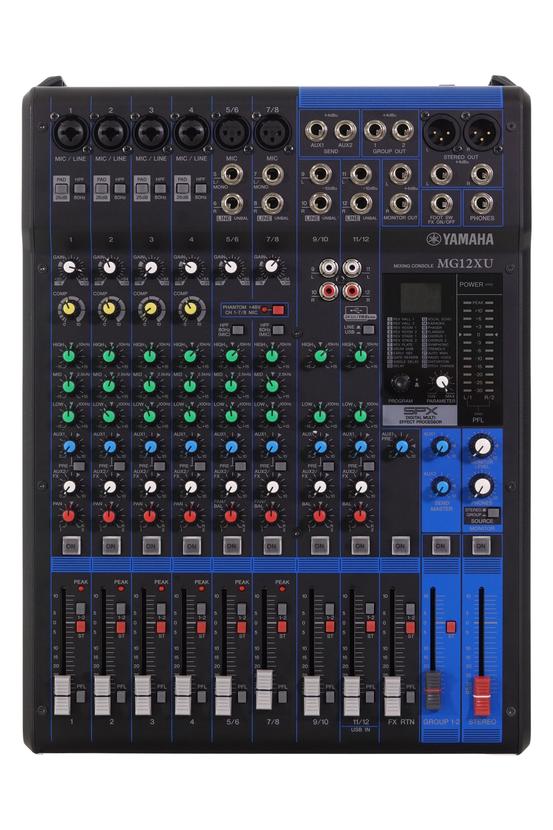

Yamaha MG12XU

The MG12XU features six D-PRE microphone preamps, 3-band EQ, one-knob compressors, XLR balanced outputs, SPX digital effects, +48V phantom power, a metal chassis and USB.

12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX)

Yamaha MG12XU

Yamaha MG12XU

4 ⭐⭐⭐⭐ This Yamaha MG12XU has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual mixer, ensuring transparency and trust in our process. Includes: IEC Mains Cable

Loading product options
  • 12-Channel Mixing Console
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Metal chassis
  • Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
  • Net Weight: 4.2 kg (9.3 lbs.)



Outline

Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

General specifications

Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk -78 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 22 W
Dimensions W 308 mm (12.1")
H 118 mm (4.6")
D 422 mm (16.6")
Net weight 4.2 kg (9.3 lbs.)
Others Operating Temperature: 0 to +40˚C
