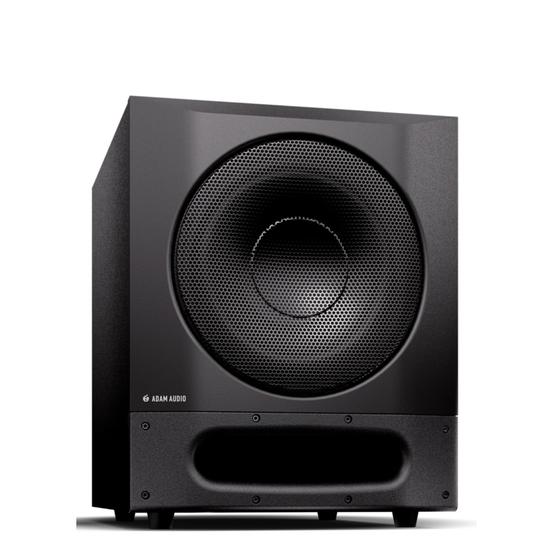

Adam Audio Sub10 Pro 10" Active Subwoofer

ADAM Audio's Sub10 Pro brings industry-first Sonarworks SoundID Reference integration directly into the hardware, allowing calibration profiles to be deployed via the ADAM Control software without routing through a DAW or system-wide audio driver. This 10-inch active subwoofer combines a high-excursion woofer with a 200 W RMS Class D amplifier (325 W peak) to deliver 106 dB SPL at 1 metre with just 3% THD across the 50-100 Hz range. The front-ported, vinyl-wrapped MDF cabinet houses comprehensive connectivity: AES3 digital, balanced XLR and TRS analogue inputs, plus a footswitch input for bass management bypass. Three operational modes-Stereo, LFE, and Wide-accommodate conventional 2.1 setups, immersive monitoring configurations, and full-range applications. The backplate provides crossover control at 70, 85, 100, or 115 Hz, with variable adjustment available through ADAM Control software. Phase can be dialled in at eight positions from 0 to -315, while the 24-bit AD converter handles analogue signals with a delay range spanning 0-10 ms at 32-bit resolution. Four bands of parametric EQ enable manual room correction, working alongside the Sonarworks integration for detailed frequency response tuning. The FEA-optimised bass reflex port minimises turbulence and distortion, contributing to a maximum peak SPL of 114 dB with 85 Hz bass management. Independent peak and thermal limiters protect the driver, while overcurrent, over-temperature, and undervoltage safeguards ensure reliable operation across extended sessions. Input sensitivity is set at 0 dBu for 100 dB SPL at 1 metre in full space with the level control at 0 dB, matching output with ADAM's main monitor range. The Sub10 Pro measures 450 x 360 x 450 mm and draws up to 450 W under full load, dropping to 2.5 W in standby. The protective metal grille and painted MDF front panel handle the rigours of studio environments, with operational specs rated from -10 to +40 C at up to 75% relative humidity. ADAM Control runs on both Windows and macOS, facilitating firmware updates and calibration management across networked systems. Features  10-inch high-excursion woofer with 200 W RMS Class D amplifier Sonarworks SoundID Reference integration via ADAM Control software for hardware calibration AES3 digital and balanced XLR/TRS analogue inputs with 24-bit AD conversion Crossover frequencies: 70, 85, 100, 115 Hz with variable control 106 dB SPL at 1 m (50-100 Hz) at 3% THD RMS Three operational modes: Stereo, LFE, and Wide for multichannel setups Phase control across eight positions from 0 to -315 Four-band parametric EQ with footswitch input for bass management bypass
