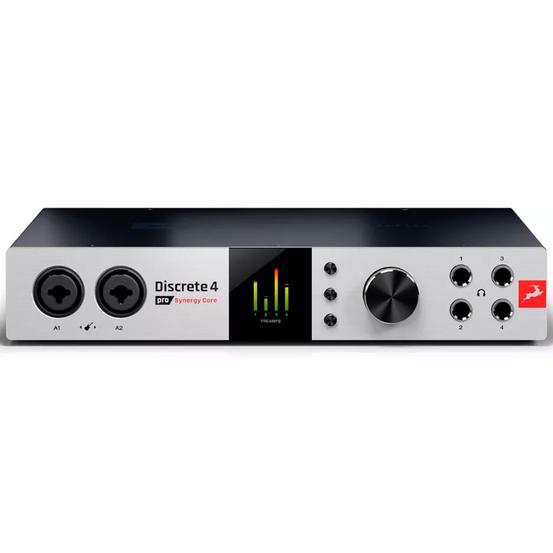

The Antelope Audio Discrete 4 Pro Synergy Core is a next‐generation 14x20 audio interface designed for professional recording, mixing and content creation.

Building on the strengths of the original Discrete series, it features upgraded AD/DA converters, enhanced software functionality and the power of the Synergy Core real‐time effects platform. With ultra‐fast Thunderbolt 3 connectivity and universal USB 2.0 support, it delivers exceptional low‐latency performance for both studio and desktop setups.

At its core are four signature Discrete mic preamps, each built with a six‐transistor topology for rich, transparent and detailed sound. Two inputs support high‐impedance instruments, while all four combo XLR/TRS inputs offer both mic and line compatibility. The improved 64‐bit AFC clocking ensures outstanding stereo imaging, depth and precision across all recordings and playback.

The interface provides extensive connectivity, including four DC‐coupled line outputs on TRS, four independent headphone outputs and digital expansion through ADAT and S/PDIF I/O. All analog and digital channels can be used simultaneously, offering flexible routing for any production workflow.

With 37 Synergy Core analog‐modelled effects included, and more than 60 additional effects available, the Discrete 4 Pro enables real‐time, near‐zero‐latency processing for tracking, mixing or streaming.

Powerful, versatile and built for modern hybrid studios, it delivers premium sound quality and professional‐grade features in a compact, reliable interface.

  • 2 mic/line inputs and 2 mic/line/instrument inputs
  • 1 stereo monitor output on TRS (+20 dBu max)
  • 4 TRS line outputs (+20 dBu max)
  • 4 independent stereo headphone outputs
  • Mic preamps with EIN of ‐128 dBu (A‐weighted)
  • Mic preamp dynamic range of ‐122 dB (A‐weighted)
  • Mic preamp THD of ‐116 dB
  • Maximum mic input level of +18 dBu
  • Up to 65 dB of mic preamp gain
  • Monitor D/A converter with 130 dB dynamic range
  • Monitor D/A THD+N of ‐115 dB
  • A/D converters with 122 dB dynamic range
  • A/D THD+N of ‐116 dB
  • Line output D/A converters with 121 dB dynamic range
  • Line output D/A THD+N of ‐100 dB
  • DC‐coupled analog outputs
  • ADAT input (up to 8 channels) and S/PDIF input
  • ADAT output (up to 8 channels) and S/PDIF output
  • USB 2.0 Type‐B audio connectivity
  • Thunderbolt 3 connectivity via USB‐C
  • Two Word Clock outputs on BNC (32 to 192 kHz)
  • Fourth‐generation 64‐bit Acoustically Focused Clocking
  • Supported sample rates: 32 to 192 kHz
  • Operating temperature from 0 to 50 C (32 to 122 F)
  • Approximate weight: 1.7 kg (3.7 lbs)
  • Dimensions: 261 mm x 44 mm x 208 mm
  • Power consumption: 15 W
