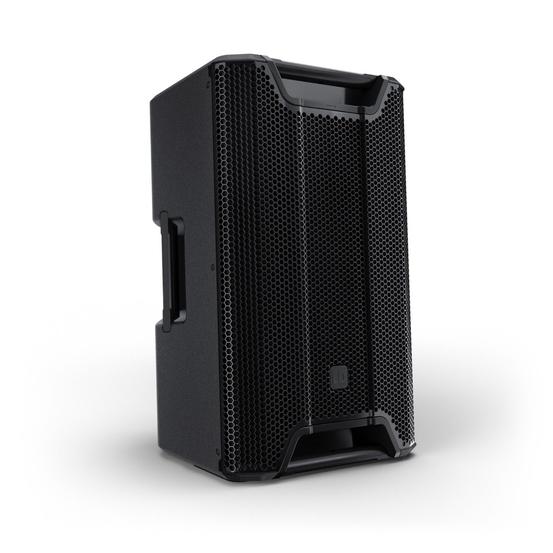

LD Systems ICOA A PRO 12" Active Coaxial PA Loudspeaker w/ Bluetooth

The LD Systems ICOA PRO 12 A is a professional coaxial PA loudspeaker that treats a 12″ woofer and 3″ titanium tweeter as a true point source. The coaxial driver architecture shares a common motor, ensuring time-accurate signal delivery and remarkably natural sound reproduction across the full frequency range. Class D amplification pushes 1000 W RMS (2000 W peak) with a maximum SPL of 133 dB, while flow-optimised bass reflex ports extend low-frequency response down to 53 Hz for genuine full-range performance.

The rotatable, BEM-optimised horn loads both woofer and tweeter simultaneously, focusing dispersion deep into the midrange at approximately 600 Hz—a significant advantage in acoustically challenging rooms. SysCore DSP processing features FIR and IIR filters, advanced limiters, and four application presets including a low-latency monitor mode. Two line/mic input channels with XLR mix tap allow multiple signal sources, while parametric 4-band EQs provide precision tuning for input and master channels. The free ICOA PRO app enables wireless control, stereo pairing with up to two tops and four subs, and Bluetooth 5.1 streaming with TWS support.

The reinforced ABS cabinet includes six M10 flying points, EasyMount truss compatibility, and four ergonomic carrying handles. A 50° tilt angle converts the loudspeaker into a stage monitor, while tripod mounting offers selectable 0° or 5° angles. The rotatable horn accommodates both vertical and horizontal orientation, and a colour display with one-knob control simplifies onsite adjustments. Padded, water-repellent protective covers are available separately for transport and storage.
