LD Systems Stage Monitor G3

LD Systems Stage Monitor G3

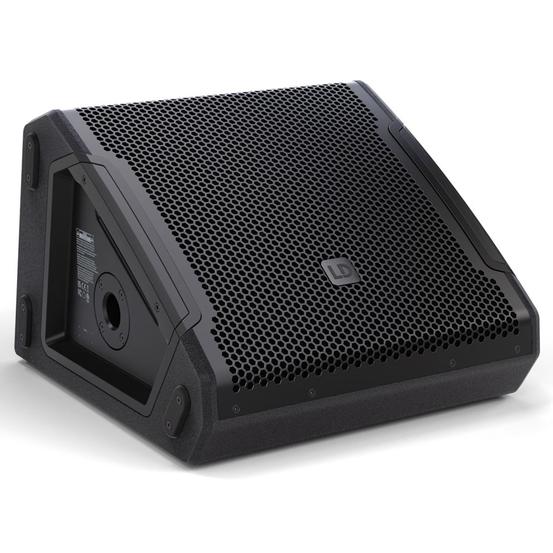

LD Systems Stage Monitor G3 - 12" Active 300W Coaxial

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone.

These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Features
  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
  • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
  • 12" woofer with 2.5" voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection
  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grille
  • Product type: Stage monitors
  • Type: Powered
  • Colour: Black
  • System output (RMS): 300 W
  • System output (Peak): 1200 W
  • Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
  • Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
  • Frequency response (-3 dB): 68 - 18000 HZ
  • Frequency response (-10 dB): 55 - 20000 Hz
  • Crossover frequency: 1400 Hz
  • Monitor angle: 33°
  • Dispersion (H x V): 50° x 90°
  • Width: 425 mm
  • Depth: 453 mm
  • Height: 315 mm
  • Weight: 17.4 kg
  • Amplifier: Class D
  • Power supply: SMPS
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 150 W
  • Power in / out: PowerCON compatible
  • Line inputs: 2
  • Line input connectors: 6.3 mm jack
  • Line input connectors: XLR - combo
  • Line thru: 2
  • Line through connector: XLR
