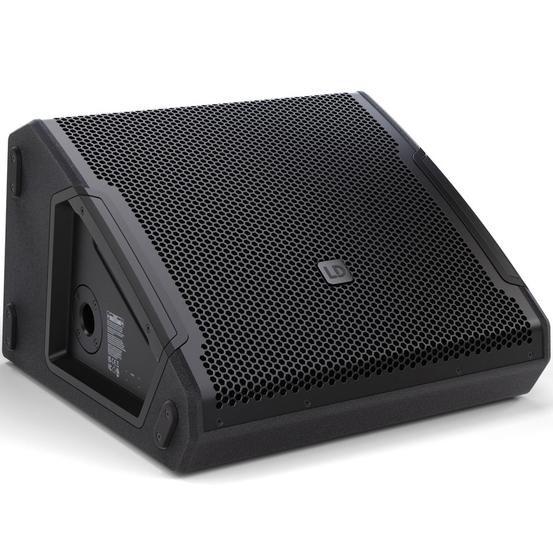

LD Systems Stage Monitor G3 - 15" Active 300W Coaxial

Loading product options

The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone.

These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Features
  • Compact high-performance stage monitor with top-of-the-range technologies
  • Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL
  • Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
  • 15" woofer with 3" voice coil
  • Optimised, practical radiation pattern due to 50° x 90° CD horn
  • DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
  • 3-band EQ, Notch filter, 4 application presets and delay function
  • PowerCON compatible loop-through professional power connection
  • 35 mm speaker stand flange for FOH applications
  • Durable Polyurea coating and heavy-duty front grille
  • Product type: Stage monitors
  • Type: Powered
  • Colour: Black
  • System output (RMS): 300 W
  • System output (Peak): 1200 W
  • Max. SPL Average (Sine burst): 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
  • Max. SPL Peak (Sine burst): 129 dB (fullspace @1m, 10% THD)
  • Frequency response (-3 dB): 58 - 18000 HZ
  • Frequency response (-10 dB): 48 - 20000 Hz
  • Crossover frequency: 1300 Hz
  • Monitor angle: 33°
  • Dispersion (H x V): 50° x 90°
  • Width: 505 mm
  • Depth: 517 mm
  • Height: 340 mm
  • Weight: 23.15 kg
  • Amplifier: Class D
  • Power supply: SMPS
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 150 W
  • Power in / out: PowerCON compatible
  • Line inputs: 2
  • Line input connectors: 6.3 mm jack
  • Line input connectors: XLR - combo
  • Line thru: 2
  • Line through connector: XLR
