LD Systems STINGER G3

LD Systems STINGER G3

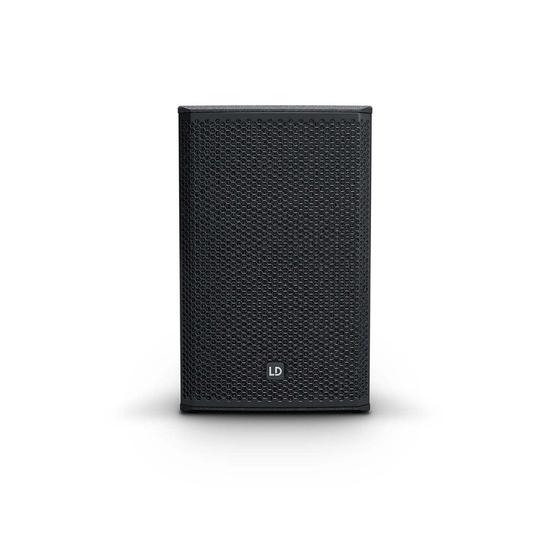

LD Systems STINGER G3 - 12A Active 8" 2-Way PA Speaker

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors.

The STINGER® 12 A G3 is powered by a highly efficient Class-D amplifier with an impressive 500-watt continuous output. The specially developed 12" woofer and a BMS tweeter driver achieve a deep bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion.

LD Systems’ proprietary DynX® DSP technology means that the STINGER® 12 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood.

An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 12 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Features
  • Active 12" 2-way bass-reflex PA speaker
  • 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
  • Perfect all-rounder for full-range, satellite and monitor applications
  • Practical presets for fast and user-specific frequency tuning
  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
  • 12" custom woofer and BMS tweeter driver
  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
  • 2 line/mic input channels with individual gain controllers plus mono mix output
  • 15 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
  • Shock-resistant front grille for optimal protection of the speaker
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport
  • Product type: PA loudspeaker
  • Type: active
  • Amplifier: Class D
  • Dispersion (H x V): 90 x 50 °
  • System Power (RMS): 500 W
  • Peak power: 1000 W
  • Frequency response: 58 - 20000 Hz
  • Max. SPL (Peak): 131 dB
  • Line inputs: 2
  • Line input connectors: XLR
  • Line input connectors: 6.3 mm jack
  • Line outputs: 1
  • Line output connectors: XLR
  • Power supply: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
  • Monitor angle: 54 °
  • Width: 390 mm
  • Height: 627 mm
  • Depth: 377 mm
  • Weight: 20.1 kg
