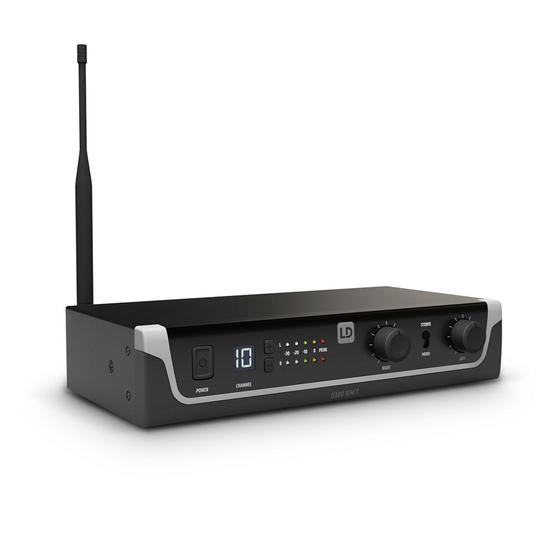

LD Systems U305 In-Ear Monitoring Transmitter 584-608 MHz

LD Systems U305 In-Ear Monitoring Transmitter 584-608 MHz

LD Systems U305 In-Ear Monitoring Transmitter 584-608 MHz

Loading product options

The new LD Systems U300 IEM In-Ear Monitoring-System with 96 UHF channels offers outstanding sound quality and a large dynamic range in the 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz, or 514 MHz - 542 MHz.

The system toggles between mono and stereo mode for perfect monitoring for live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 50 Hz - 16 kHz and stands out because of its high signal-to-noise ratio and low total harmonic distortion. The LD U300 IEM permits simultaneous operation of up to 6 systems.

Both transmitter and receiver feature multifunctional displays that show all important system information. With high quality batteries, it is possible to attain running times of 10 hours and more.

Features
  • Product type: In-ear Monitoring Accessories
  • Type: Transmitters
  • Transmission frequency range: 584 - 608 MHz
  • Channels: 12
  • Modes of operation: FM, mono/stereo
  • Modes of operation: mono/stereo
  • Transmission method: FM, mono/stereo
  • Rated HF output power: 10 mW
  • Frequency response: 50 - 16.000
  • Signal-to-noise ratio: 90 dB
  • Total Harmonic Distortion (THD): <0,5%
  • Dynamic range: 88 dB
  • Inputs: 2
  • Input connectors: 6.3 mm jack
  • Input connectors: XLR
  • Input impedance (kOhms): 8.5 kOhm
  • Input sensitivity: -4.5 dbu
  • Antenna connector: BNC
  • Controls: Mono/stereo switch
  • Controls: input level
  • Controls: Power On/Off
  • Indicators: LC display
  • Power consumption: 1.7 W
  • Power supply: 12 - 18 V DC
  • Width: 212 mm
  • Height: 43 mm
  • Depth: 123 mm
  • Weight: 0,66 kg
  • Accessories (included): BNC-Antenna
  • Accessories (included): Power supply
  • Accessories (included): 19" Rack mount kit
