Motu Audio Express Audio Interface

Motu Audio Express Audio Interface

Motu Audio Express Audio Interface - Audio Express 6x6 Hybrid Firewire-USB 2.0 Interface

MOTU has always been at the forefront of computer based production and live performance with their award-winning audio and MIDI interface. And with the Audio Express, they've created a compact yet powerful and highly featured audio interface.



Multi-channel audio for your Mac or PC

Thanks to MOTU’s Hybrid interface technology, the Audio Express connects to any current Mac or PC via FireWire or high-speed USB 2.0. Connect your mic, guitar, keyboard, and digital input, and you are ready to make pro-quality recordings in your personal studio.



Hands-on mixing for studio and stage

Quickly balance the levels of your mic, guitar, keyboard, and a S/PDIF device, right from the front panel. Each instrument has its own volume control. Route inputs directly to any output pair, each with its own unique mix: main outs, line outs, S/PDIF out, and phones.



Simplicity by design

Connect your powered speakers. Plug in your instruments. Adjust their volumes with the front panel knobs. Double-click to install the drivers. What could be easier? The Audio Express is designed to be simple to use, so you can focus on your music and performance.


Studio-grade sound

The Audio Express delivers MOTU’s renowned, award-winning audio interface technology to your personal studio with the pristine audio quality, advanced engineering, and rock-solid performance that MOTU interfaces are known for worldwide.

Features

  • 6-input, 6-output audio interface for Mac and Windows
  • 6 x 8 physical input/output channels — all channels are available simultaneously and operate independently.
  • Hybrid FireWire/USB 2.0 connectivity — connect to your Mac or PC via either bus-powered Firewire or hi-speed USB2.
  • 8-bus digital mixer — routes and mixes all six inputs to any output pair.
  • Four separate mixes — each output pair (main outs, line outs, S/PDIF out, and phones) can have a completely different mix of all six inputs, with or without computer tracks.
  • Two mic/guitar combo jacks — provide hi-Z 1/4” guitar input or XLR mic input with phantom power, 20 dB pad, Precision Digital Trim™, and plenty of gain.
  • Stereo analog inputs — on line-level, balanced TRS quarter-inch jacks. Great for keyboards or other line level-input signals.
  • Stereo main outs — on balanced TRS quarter-inch jacks. Connect directly to powered speakers (or other line-level analog destination).
  • Stereo 24-bit 96kHz S/PDIF digital in/out.
  • Stereo headphone output on quarter-inch jack with independent volume control.
  • Support for standard sample rates up to 96 kHz.
  • Precision Digital Trim™ — digitally controlled analog trim on all inputs provides adjustments in approximately 1 dB increments. Fine-tune the balance of your inputs and then save/recall trim configurations.

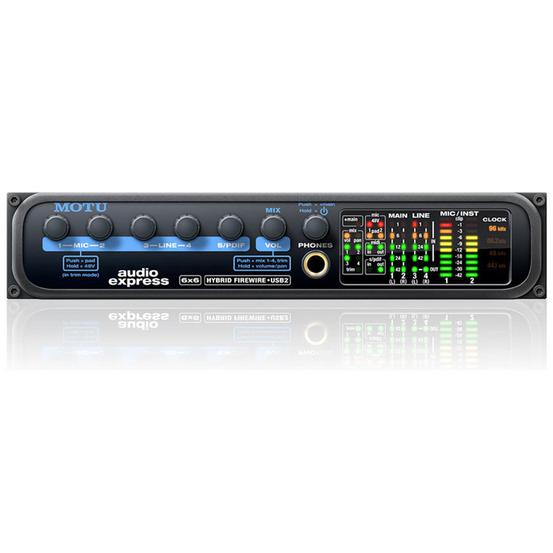

  • Front-panel mixing and control — each input has its own dedicated volume knob. Control multiple mixes with clear feedback from front panel LEDs and metering.
  • CueMix FX cross-platform mixing software — attractive on-screen graphic mixing with an instrument tuner and audio analysis tools including real-time FFT display, spectrogram "waterfall" display, oscilloscope, X-Y plot and linear or polar phase analysis.
  • Stand-alone operation — bring the Audio Express to your gig, with or without a computer. Just plug in the included power adapter and you are ready to go. Need to tweak the mix? Just turn the front-panel knobs.
  • Front panel volume control of main outs and headphone jack.
  • Expandable — add additional interfaces for more I/O as your needs grow.
