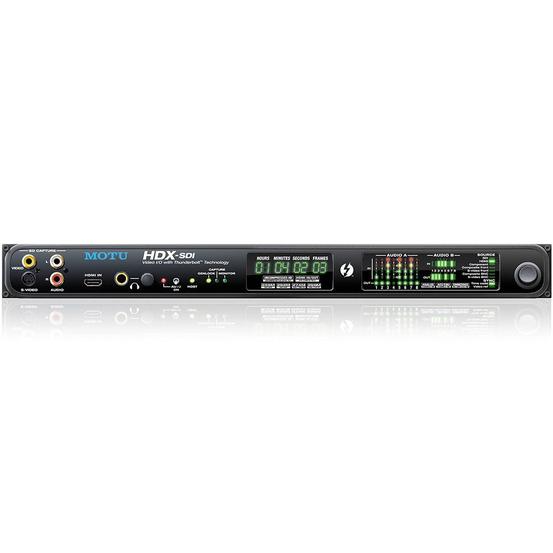

Motu HDXSDI Analog Video Interface w Thunderbolt

Motu HDXSDI Analog Video Interface w Thunderbolt

Motu HDXSDI Analog Video Interface w Thunderbolt

Thunderbolt is the next‐generation high‐speed I/O technology that supports high‐resolution displays and high‐performance data devices through a single, compact port. It sets new standards for speed, flexibility, and simplicity.

Imagine being able to connect a high‐resolution display, uncompressed broadcast‐quality video I/O, and super high‐speed storage to your Apple MacBook Pro, Mac Pro cylinder, or Thunderbolt‐equipped PC, using just a few Thunderbolt cables. With the HDX‐SDI, that capability becomes a reality.

  • Thunderbolt I/O format offering massive bandwidth: 10 Gbps for data plus 10 Gbps for DisplayPort
  • Daisy‐chaining supports up to six high‐speed, high‐bandwidth devices
  • Bidirectional performance for simultaneous input and output
  • Provides 10 watts of bus power to drive connected peripherals
  • Flexible connectivity via electrical or optical Thunderbolt cables up to 30 meters
  • HDX‐SDI video interface supports SD and HD camcorders, capturing clips directly into editing software
  • Full raster capture with uncompressed HD‐SDI or HDMI video at 4:2:2 10‐bit colour depth and 1920x1080 resolution
  • Supports multiple workflows including Apple ProRes, ProRes HQ, Avid DNxHD, and other host‐based codecs
  • Enables pixel‐for‐pixel monitoring via HDMI, HD‐SDI, and analog outputs for accurate colour and image reference
  • Captures and monitors up to 16 audio channels (analog, AES/EBU, or embedded) at sample rates up to 96 kHz
  • Supports Sony 9‐pin machine control for Batch Capture and Edit to Tape operations
  • Maintains frame‐accurate synchronisation using time code and video reference
