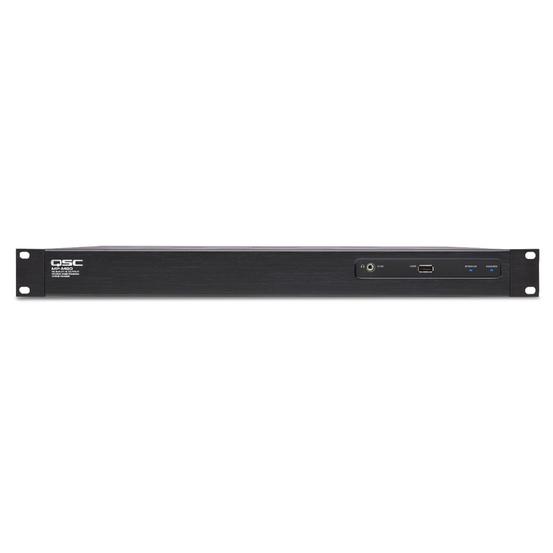

QSC MPM80 16 Input 8 Output Music and Paging Zone Mixer

The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.

The MP-M80 has eight mic/line inputs, eight line inputs and eight zone outputs. Each line input features dual phono jacks (summed to mono) for easy connection to the sources typically found in business music installations.

The MP-M80 is equipped with cue bus outputs for auditioning zones and tracks, a USB port for storing and recalling design files, presets and scenes (beyond the mixer’s internal memory), both conveniently located on the front panel. It also includes two general purpose inputs for external control triggers, and an Ethernet port for connection to a wireless router to allow your system to gain access to the designer and end user control apps (MP Install and MP Manage.)

Inputs feature comprehensive processing including high and low-pass filters, 4-band parametric EQ, a gate and a dynamics processor that may be configured as an automatic gain control (AGC) or a compressor. The processing is responsive and musical. Any combination of input channels may be designated as sources for any output zone. Two input channels may be designated as priority sources that will ‘duck’ the selected input channel for paging/ announcements or to allow a higher-priority source to take over. There are also processing blocks for auto-loudness, equalization (1/3 octave GEQ) and limiting. Output channels include 12 anti-feedback notch filters with a wizard to assist in setting the filters.

A dedicated loudspeaker processing section contains preset Intrinsic Correction voicings for QSC loudspeakers to maximize the value of the systems. Users may also create, save and recall their own loudspeaker voices using the 6-band fully-parametric equalizer along with high-pass and low-pass filters with a choice of filters (Linkwitz-Riley or Butterworth) and slope (12, 18 or 24 dB/octave).

An integral stereo mixer may be used for reinforcement of live performance or for conference/presentation mixing. Effects processing and a gain-sharing automatic microphone mixer are both available. Any inputs can be assigned to the mixer and its output may be assigned to any combination of output zones.
