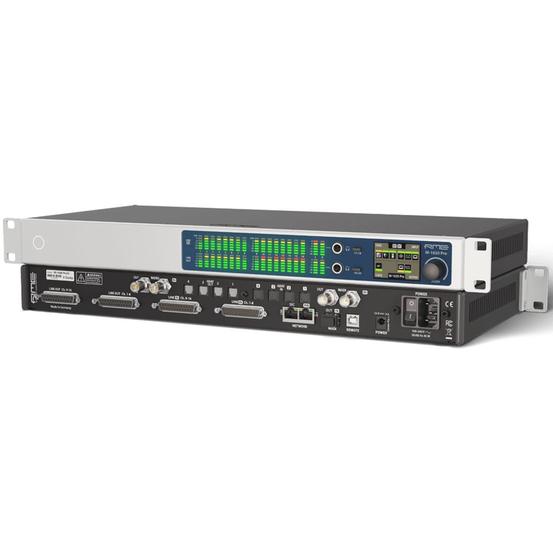

RME M-1620 16 Channel A/D 20 Channel D/A Converter w/ ADAT MADI & Dante

The RME M-1620 Pro D converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Dante network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.

RME prioritises reliability by equipping the M-1620 Pro with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.

Responding to frequent requests, the M-1620 Pro D integrates 64 channel Dante connectivity, providing direct links to other audio devices via standard ethernet switches. If redundancy is not required, the device can act as a switch itself and allow daisy-chains of several Dante devices. Users can record and playback up to 64 channels of any of the M-1620’s analog and digital I/O on their computer using Audinate’s Dante Virtual Soundcard™ (license not included).

The M-1620 Pro allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS. Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.

Control all device states directly from the front panel for convenient, direct access to all features. RME network audio devices can be reached over network (including wirelessly over Wi-Fi) and USB for convenient remote access, allowing the rapid creation of gain groups, phantom power switching and clock configuration. In addition, a JSON based API and even SysEx MIDI commands can be used to integrate each model virtually anywhere. The integrated routing matrix allows single channel routing across all analog and digital I/O. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!

Features

• Converts 16 analog line-level signals (switchable up to +24 dBu) to and from MADI, ADAT, and Dante network technologies
• Single-height 19-inch rack unit with LED level meters, display, and two separate headphone outputs for monitoring
• Dual network and MADI connections, monitored DC input, and internal AC power supply ensure reliable operation
• Integrates 64 channel Dante connectivity for direct links to other audio devices via standard Ethernet switches
• Manual aliasing filter configuration, SteadyClock FS for reduced jitter, and versatile connectivity options including Word Clock and MADI connectors
• Front panel access for quick adjustments, standalone operation with user-defined presets, and remote control via network (including Wi-Fi) and USB
• Includes 16 Line Inputs, 16 Line Outputs, 2 Headphone Outputs, 4 ADAT I/O ports, optional MADI Optical SFP, redundant PSU option, and USB for firmware updates and remote control
