RME M-1620 16 Channel A/D 20 Channel D/A Converter w/ ADAT MADI & Mila

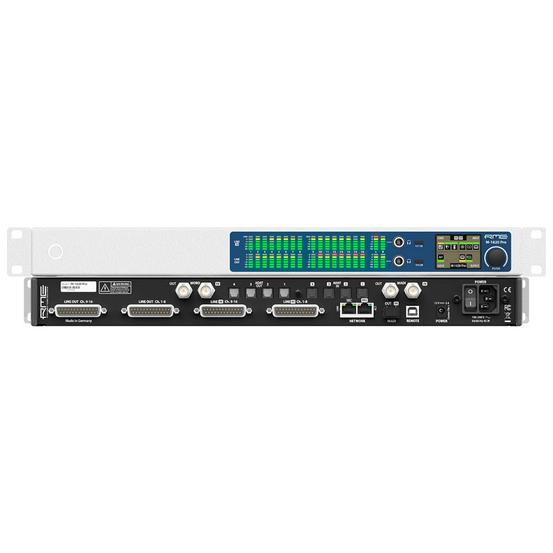

The RME M-1620 Pro converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Milan network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.

RME prioritises reliability by equipping the M-1620 Pro with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.

The Milan-certified model transmits and receives up to 128 channels at 48 kHz (96 @ 96 kHz, 64 @ 192 kHz) with precise, fixed latency across a deterministic network. It reveals its status and configurable options to controllers using the open IEEE 1722.1 (ATDECC) standard.

The M-1620 Pro allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS. Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.

Control all device states directly from the front panel for convenient, direct access to all features. RME AVB devices can also be fully remote controlled via a web-interface on any network link (including wirelessly over Wi-Fi), allowing for the rapid creation of gain groups, phantom power switching, and routing of signals to headphones for monitoring. The integrated routing matrix allows for quick routing of any analog inputs straight to the headphone output, as well as all digital signals and AVB streams. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!

Features

• Converts 16 analog line-level signals (switchable up to +24 dBu) to and from MADI, ADAT, and Milan network technologies
• Single-height 19-inch rack unit with LED level meters, display, and two headphone outputs for easy monitoring
• Dual network and MADI connections, monitored DC input, and internal AC power supply ensure reliable operation
• Supports up to 128 channels at 48 kHz (96 @ 96 kHz, 64 @ 192 kHz) with deterministic latency using IEEE 1722.1 (ATDECC) standard
• Manual aliasing filter configuration, SteadyClock FS for reduced jitter, and versatile connectivity options including Word Clock and MADI connectors
• Front panel access for quick adjustments, standalone operation with user-defined presets, and remote control via web interface over Wi-Fi
• Includes 16 Line Inputs, 16 Line Outputs, 4 ADAT I/O ports, optional MADI Optical SFP, redundant PSU option, and USB for firmware updates and remote control
