Samson Airline 99M Headset Wireless System

Samson Airline 99M Headset Wireless System

Samson Airline 99M Headset Wireless System

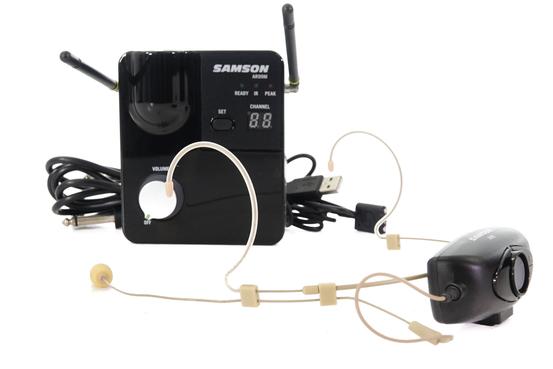

4 ⭐⭐⭐⭐ This Samson Airline 99M Headset Wireless System has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual wireless system, ensuring transparency and trust in our process. Includes: user manual, power supply and original packaging

Loading product options

The AirLine 99m AH9 system is a unique wireless microphone solution offering high-definition sound for fitness instructors and active performers, featuring the AH9 micro transmitter mounted directly to the Qe fitness headset microphone for complete freedom from cables and beltpacks.

AirLine 99m Fitness Headset Wireless System

  • Frequency-agile UHF wireless system
  • 100 operating channels across 24MHz bandwidth
  • Up to 8 simultaneous systems per frequency band (region dependent)

AH9 Wireless Micro Transmitter

  • Micro transmitter mounted directly to a double ear headset (no beltpack or cable required)
  • Water/sweat-resistant Qe headset microphone with condenser capsule
  • Up to eight hours of battery life using built-in rechargeable lithium-ion battery
  • Sealed gold contact charging connector
  • Low battery LED indicator
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • One-touch Mute
  • Windscreen included

AR99m Wireless Micro Receiver

  • True RF Diversity micro receiver design minimizes dropouts
  • Set button scans/selects optimal channel options
  • IR sync wirelessly matches transmitter to receiver frequency
  • Tone key prevents unwanted noise when transmitter is off or out of range
  • Channel and Ready/IR/Peak LED displays
  • Balanced XLR, unbalanced 1/4" and unbalanced 1/8" outputs
  • USB port for adding a Samson XPD Series wireless system or charging AH9 transmitter
  • Rotary volume knob with integral power switch
  • 1/4-wave antennas

Specifications

System
Working Range 300' (100m) line of sight
Audio Frequency Response 50 Hz - 15 kHz
T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range >100 dB A-weighted
Signal to Noise >95 dB
Tone Key Frequency 35 kHz
AH9 Transmitter
Input Gain Range 20dB
RF Power 10mW EIRP
Power Requirements 3.6V 500mAh
Lithium Ion rechargeable battery
Battery Life 8 hours
Dimensions 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm
Weight 0.13lb / 60g
AR99m Receiver
Audio Output Level 1/8" (3.5mm) & 1/4" (6.3mm) jack (unbalanced) +14dBu
Audio Output Level XLR jack (balanced) +9dBu
Audio Output Impedance 1/8" (3.5mm) & 1/4" (6.3.mm) jack (unbalanced) 810 Ohms,
Audio Output Impedance XLR output jack (balanced) 240 Ohms
Sensitivity 100dBm/30dB SINAD
Image Rejection >50dB
Operating Voltage 15VCC 600mA
Dimensions (LxWxH) 4.3" x 3.74" x 1.5" / 110mm x 95mm x 39mm
Weight 0.42lb / 192g
