Sennheiser SKM 100 G4-B Handheld Transmitter

Sennheiser SKM 100 G4-B Handheld Transmitter

Sennheiser SKM 100 G4-B Handheld Transmitter - SKM 100 G4-B Handheld Transmitter

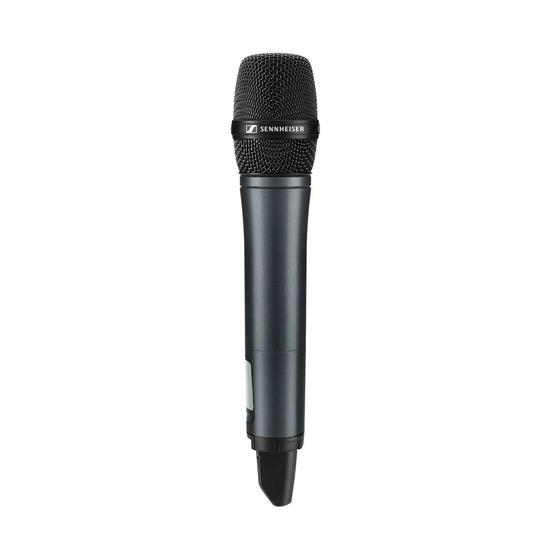

The Sennheiser SKM 100 G4-B Handheld Transmitter is a powerful handheld transmitter with a lightweight aluminum housing for evolution wireless G4 100 Series systems.

Note: Additional Sennheiser e 835, e 845, e 865, e 935, or e 945 capsules are required.



Brand Sennheiser
Frequency Range 1G8: 1785 - 1800 MHz
A: 516 - 558 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Signal-to-noise ratio ≥ 110 dBA
RF output power Max. 30 mW
Switching bandwidth up to 42 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Operating time Typically 8 h
Modulation Wideband FM
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
Input impedance 40 kΩ
Max. Input voltage 3 Veff
Powering 3 V battery / 2.4 V rechargeable battery
Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response 80 – 18,000 Hz
Temperature Range -10 °C to +55 °C
Frequency stability ≤ ±15 ppm

Key Features of the Sennheiser SKM 100 G4-B Handheld Transmitter

  • Your choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers via new linking functionality
  • Up to 20 compatible channels
  • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations
