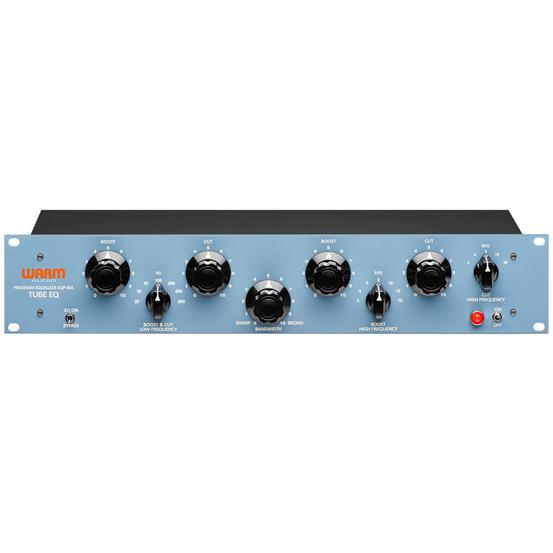

Warm Audio EQPWA Tube Equaliser

Warm Audio EQPWA Tube Equaliser

The EQP-WA is a re-creation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box.

Warm Audio's goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.

  • High-voltage tube equalizer, utilzing CineMag USA Transformers
  • Two premium vacuum tubes by Tung-Sol- one 12AX7 and one 12AU7
  • Tubes are socketed for easy swapping and replacement
  • Tube equalizer based on the classic “Pultec” EQP-1A.
  • Cinemag inductor eq section
  • EQ section is bypassable - signal still passes through tubes and transformers for warming effect
  • XLR and TRS transformer balanced outputs
  • Flat frequency response from 20 HZ - 50 kHz
  • XLR and TRS transformer balanced inputs
  • No insertion loss - loss restored by tube amplifier
  • 5 Added frequency points for greater flexibility
  • Switchable 115/230 volt IEC power inlet
  • Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable
  • Low frequency boost - 20, 30, 60, 100, 200, 400, 800 hz - 12 dB
  • Low frequency cut - 20, 30, 60, 100, 200, 400, 800 hz - 18 dB
  • High frequency boost - 3, 4, 5, 8, 10, 12, 16 khz - 18 dB
  • High frequency cut - 3, 4, 5, 10, 20 khz - 14 dB
  • Boost and cut controls can be used simultaneously for phase effect
