Zoom AMS-24 2-In/4-Out Audio Streaming Interface - Zoom
Loading product options

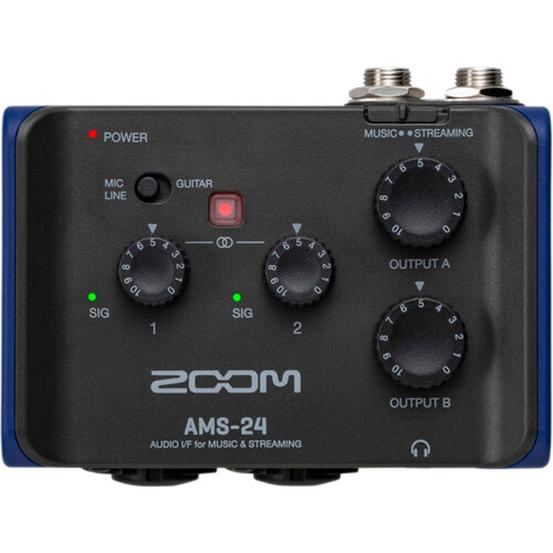

On-the-go musicians looking for a compact and versatile audio interface will appreciate the streamlined and easy-to-use feature set on the Zoom AMS-24 2-In/4-Out Audio Streaming Interface an ultraportable solution for recording and streaming to a Mac/Windows computer or iOS/Android mobile device with two TRS/XLR inputs, two TRS outputs, two headphone jacks, a USB-C connector, and modes for both streaming and recording applications.
Plug your instruments or microphones into the two TRS/XLR inputs, and power condenser mics by engaging the 48V phantom-power switch. Input 1 features a Hi-Z switch for guitar players. Monitor via the two 3.5mm headphone jacks, or connect monitor speakers to the stereo TRS output. The AMS-24 supports 24-bit resolution recordings at sampling rates up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by two AA batteries or an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make recording overdubs and adding music to your streams simple and easy.
Perfect for mobile recording or streaming, the AMS-24 includes two XLR/TRS combo inputs. It also includes two 3.5mm headphone outputs and two TRS outputs for external monitors.
Use the AMS series with any device, and integrate seamlessly with commonly used software, apps, and platforms, thanks to support for Mac and PC computers along with iOS and Android devices. In Streaming mode, all inputs are combined into a single signal, so you can easily stream without needing additional complicated software. In Music mode, you can record into your DAW with expanded input and output routing options.
With onboard hardware switches, the AMS-24 is designed to simplify common streaming challenges without the need for additional software. Intuitive knobs allow you to control input gain and monitoring levels. Group the two inputs together using the Stereo switch.
Use the Direct Monitor switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.
The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
| Number of Input Channels | Mono (MIC/LINE): 2 |
|---|---|
| Number of Output Channels | Stereo (TRS): 1 Stereo (PHONES): 2 |
| Input 1-2 Type | XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|
| Input Gain | -∞ - +58 dB / -∞ - +50 dB (when set to GUITAR) |
| Input Impedance | XLR: 2.7 kΩ TRS: 18 kΩ / 330 kΩ (when set to GUITAR) |
| Maximum Input Level | XLR: +6 dBu TRS: +22 dBu / +8.5 dBu (when set to GUITAR) |
| Phantom Power | +48 V |
| OUTPUT A Type | TRS phone jacks (impedance balanced) |
| OUTPUT A Maximum Output Level | +10 dBu (at 0 dBFS) |
| OUTPUT A Output Impedance | 100Ω |
| OUTPUT A-B Type | 3.5 mm stereo mini jacks |
| OUTPUT A-B Output Power | 30 mW + 30 mW (32Ω load) |
| OUTPUT A-B Output Impedance | 10Ω |
| USB | USB Type-C (audio interface function) Use a USB cable that supports data transfer. USB bus power is supported. |
| DC 5V | USB Type-C (for power supply) |
| Frequency Response | 44.1 kHz: ±1 dB (20 Hz - 20 kHz) 96 kHz: ±1.5 dB (20 Hz - 40 kHz) |
|---|---|
| Equivalent Input Noise | -120 dBu or less (IHF-A) at +58 dB / 150Ω input |
| Input and Output Channels | Recording: 2 channels Playback: 4 channels |
|---|---|
| Sampling Frequencies | 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz |
| Bit Depth | 24-bit |
| Interface | USB 2.0 |
| Class | USB Audio Class 2.0 |
| Power Source | 2 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-17): DC 5 V / 1 A USB bus power supported |
|---|---|
| Rated Current | USB/AC adapter (5 V): 380 mA Batteries (2.4 V): 470 mA |
| Estimated Continuous Operation Time Using Batteries | 44.1 kHz, 48 V off, with 32Ω headphone load Alkaline batteries: about 4 hours NiMH batteries (1900 mAh): about 5.5 hours Lithium batteries: about 11 hours The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions. |
| Power Consumption | 5 W maximum |
| Dimensions | 94.5 x 74.0 x 46.0 mm |
|---|---|
| Weight (Unit Only) | 0.134 kg |
| Weight (Including Batteries) | 0.18 kg |
