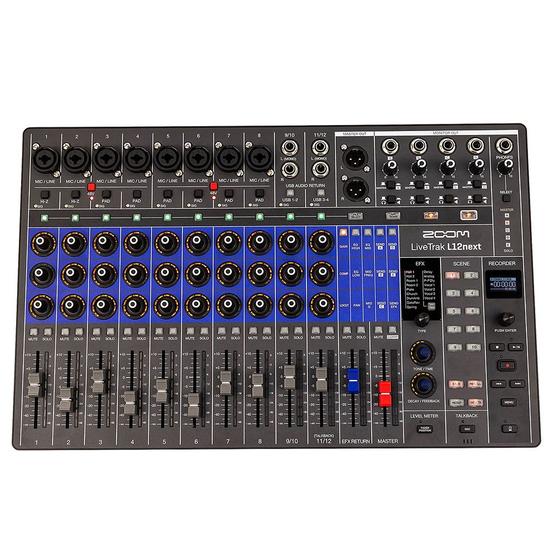

Zoom LiveTrak L-12NEXT 12-Channel Digital Mixer & Recording Console

Zoom LiveTrak L-12NEXT 12-Channel Digital Mixer & Recording Console

Zoom LiveTrak L-12NEXT 12-Channel Digital Mixer & Recording Console

The L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel can deliver High/Mid/Low EQ control. With a simple switch you can also adjust gain, pan, and sends, offering hands-on mixing, just like an analog console.

  1. Inputs

    Combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices.

  2. Channel Strip

    In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends.

  3. Function Selector

    Choose which controls are accessible on the multi-function encoder knobs ie: EQ, Gain, Sends

  4. Custom Mixes

    Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. The main outputs feature XLR connectors to easily connect to your PA.

  5. Recording Features

    Quick access to advanced recording capabilities such as mixdown, overdub and autopunch.

  6. Main Controls

    LED screen and encoder knob let you access the menu system to create new projects, recall previous projects, and customize your recorder settings.

  7. Scene Control

    Save up to ten different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more.

  8. Talkback Mic

    The engineer can use the talkback mic to talk to the artists right from the board.

  9. Fader Position

    Fader Position button lets you quickly view saved fader positions when recalling scenes.

  10. EFX

    16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.



Inputs Mono (MIC/LINE) 8
  Stereo (LINE) 2
Outputs MASTER OUT 1
  MONITOR OUT 5


Inputs

Mono (MIC/LINE) Type XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  Input gain PAD off: +16 – +60 dB
    PAD on: −10 – +34 dB
    Hi-Z on: 0 – +44 dB (when gain boost off)
  Input impedance XLR: 4.6 kΩ or more
    TRS: 4.6 kΩ/1 MΩ (when Hi-Z on)
  Maximum input level PAD off: −2 dBu (at 0 dBFS)
    PAD on: +24 dBu (at 0 dBFS)
  Phantom power +48 V
Stereo (LINE) Type TS phone jacks (unbalanced)
  Maximum input level +14 dBu


Outputs

MASTER OUT Type XLR jacks (balanced)
  Maximum output level +14.5 dBu
  Output impedance 200 Ω
MONITOR OUT Type Standard stereo phone jacks
  Maximum output level 42 mW + 42 mW at 60 Ω
  Output impedance 55 Ω


Buses

MASTER 1
MONITOR 5
SEND EFX 1


Channel strip

COMP
LOCUT   40–600 Hz, 12 dB/OCT
EQ HIGH 10 kHz, ±15 dB, shelving
  MID 100 Hz – 8 kHz, ±15 dB, peaking
  LOW 100 Hz, ±15 dB, shelving
PHASE


Level meters

  8 segments


Send effects

  16 types


Recorder

Maximum simultaneous recording tracks 14
Maximum simultaneous playback tracks 12
Recording formats Individual tracks: 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV
  Master tracks: 44.1/48/96 kHz, 16/24-bit or 32-bit float, mono/stereo WAV
Recording media 4–32GB cards compatible with the SDHC specification (class 10 or higher)
  64GB–1TB cards compatible with the SDXC specification (class 10 or higher)


Audio interface

Input and output channels Recording: 14 channels
  Playback: 4 channels
Sampling frequencies 44.1/48/96 kHz
Bit depths 24-bit, 32-bit float
Interface USB 2.0

Card reader Mass storage class USB 2.0 High Speed
Sample rates 44.1/48/96 kHz
Frequency response 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz
  96 kHz: −3.0 dB, 20 Hz – 40 kHz
Equivalent input noise Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input
Display 128×64 OLED
Power AC adapter: ZOOM AD-19 (DC 12V/2A)
Power consumption 16 W maximum
Dimensions 445 mm (W) × 285 mm (D) × 73 mm (H)
Weight (main unit only) 2.40 kg
