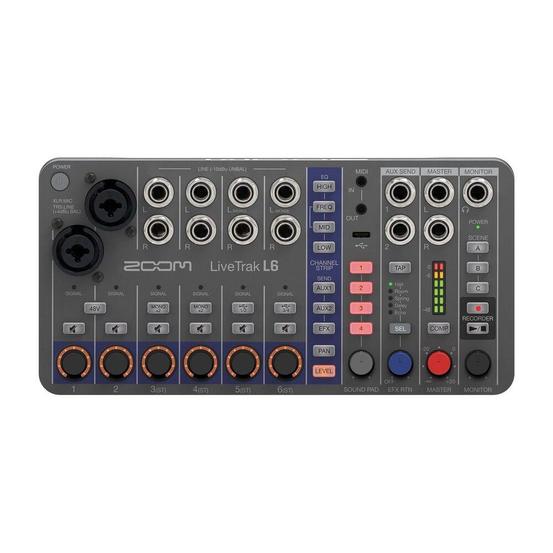

Zoom LiveTrak L6 Multi-Track Mixer and Recorder

Zoom LiveTrak L6 Multi-Track Mixer and Recorder

Zoom LiveTrak L6 Multi-Track Mixer and Recorder - Zoom

The Zoom LiveTrak L6 Multi-Track Mixer and Recorder is our most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.



Key Features of the Zoom LiveTrak L6 Multi-Track Mixer and Recorder

  • 10-channel ultra-Compact digital mixer
  • 2 XLR/TRS Combo inputs + 4-Stereo inputs
  • 12-track simultaneous recording
  • MIDI In/Out for mixer control and USB MIDI interface
  • 3 Scene memory for storing mixer and tempo setting
  • 32-bit float multi-track recording to micro SD card
  • 5 Internal Send Effects
  • 2 AUX send outputs
  • 4 Assignable sound pads (sample player)
  • 3-Band EQ with MID freq control for each channel
  • Headphone output + Master output
  • Eurorack compatible
  • 12-in / 4-out Audio interface
  • 4 AA battery power operation or USB power



Full Featured Mixer

Don’t let its size fool you. The L6 is designed with big mixer capabilities; a full channel strip for each track including aux sends, pan, effects, and a

3-band mid-sweepable EQ.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on microSD cards up to 2TB. Share the live mix, or transfer your stems to your favorite DAW for editing and mixing.

MIDI Connectivity for Synths and Keyboards

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

  • Map parameter controls such as volume, pan, and EQ to outboard gear
  • Trigger sound pads and scene switching
  • Tempo sync delay and echo

Record & Control

The L6 can be used as a 32-bit float 12-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the microSD card. It’s also a control surface for your favorite DAW.

Broadcast & Stream

The L6 is the perfect companion for video streams that need broadcast quality audio, no matter the location. Connect to your favorite streaming software on PC, Mac, iOS, and Android devices.

Use it Anywhere

Use four AA’s for up to 3 hours of power or a USB battery for extended portable use.



What's in the box

  • Zoom LiveTrak L6 Multi-Track Mixer and Recorder
  • AD-17 USB AC Adapter
  • USB-C Cable
  • 10-channel ultra-Compact digital mixer
  • 2 XLR/TRS Combo inputs + 4-Stereo inputs
  • 12-track simultaneous recording
  • MIDI In/Out for mixer control and USB MIDI interface
  • 3 Scene memory for storing mixer and tempo setting
  • 32-bit float multi-track recording to micro SD card
  • 5 Internal Send Effects
  • 2 AUX send outputs
  • 4 Assignable sound pads (sample player)
  • 3-Band EQ with MID freq control for each channel
  • Headphone output + Master output
  • Eurorack compatible
  • 12-in / 4-out Audio interface
  • 4 AA battery power operation or USB power

Input and Output Channels

Inputs (MIC/LINE mono)2
Inputs (LINE stereo)4
Outputs (AUX SEND mono)2
Outputs (MASTER stereo)1
Outputs (MONITOR stereo)1

Inputs

MIC/LINE Connectors2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gainAdjustment unnecessary (dual A/D converter circuits used)
Input impedance (XLR)3.8 kΩ or more
Input impedance (TRS)39 kΩ or more
Maximum input level (XLR)+4 dBu
Maximum input level (TRS)+24 dBu
Phantom power+48 V (Channel total 10 mA or less)
LINE Connectors8 TS phone jacks (unbalanced)
LINE Input impedance10 kΩ
Maximum LINE input level+9 dBu

Outputs

AUX SEND Connectors2 TRS phone jacks (impedance balanced)
AUX SEND Max output level+9.5 dBu
AUX SEND Output impedance147Ω
MASTER Connectors2 TRS phone jacks (balanced)
MASTER Max output level+15 dBu
MASTER Output impedance147Ω
MONITOR ConnectorTRS phone jack
MONITOR Max output level50 mW + 50 mW (63Ω load)
MONITOR Output impedance14.7Ω

Buses

MASTER1
AUX SEND2
SEND EFX1

Channel Strip

3 BAND EQ HIGH10 kHz, ±15 dB, shelving
3 BAND EQ MID100 Hz - 8 kHz, ±15 dB, peaking
3 BAND EQ LOW100 Hz, ±15 dB, shelving

Recorder

Max simultaneous recording tracks12
Max simultaneous playback tracks2
Recording formats48 kHz, 32-bit float, mono/stereo WAV
Recording mediamicroSDHC / microSDXC (Class 10 or higher)

Audio Interface

Input/Output channelsInput: 12 channels
Output: 4 channels
Sampling frequency48 kHz
Bit depth32-bit float / 24-bit
InterfaceUSB 2.0

Performance

Frequency response20 Hz - 20 kHz / -1.0 dB
Equivalent input noise-120 dBu or less (IHF-A) at 150Ω input

Power

Batteries4 AA (Alkaline, Lithium, or Rechargeable NiMH)
AC adapterZOOM AD-17: DC 5V/1A
USB powerSupported
Power consumption5 W maximum
Battery operation time (Alkaline)About 3 hours
Battery operation time (NiMH 1900 mAh)About 3.5 hours
Battery operation time (Lithium)About 7 hours

Physical

Dimensions223 x 114 x 46.5 mm
Weight (main unit only)0.526 kg
Weight (including batteries)0.618 kg
