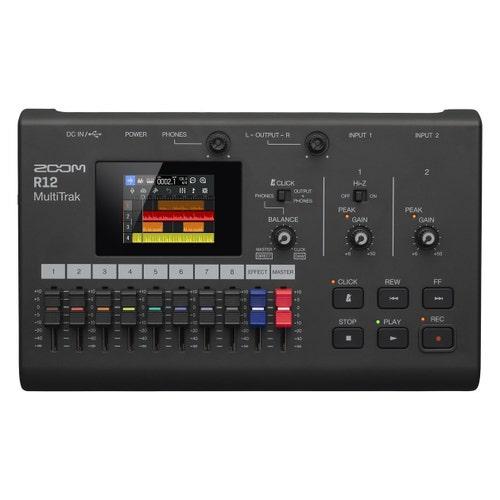

Zoom R12 Multi-Track Recorder/Interface/Controller

Zoom R12 Multi-Track Recorder/Interface/Controller

Zoom R12 Multi-Track Recorder/Interface/Controller - R12 Multi-Track Recorder/Interface/Controller

The Zoom R12 Multi-Track Recorder/Interface/Controller is a portable, all-in-one music production device that functions as a multitrack recorder, audio interface, and control surface. It features eight tracks for recording, two XLR/TRS combo inputs with phantom power, and a color touchscreen for editing and navigation. It can be powered by AA batteries, a USB connection, or an optional AC adapter, making it suitable for both studio and on-the-go use.

Connectors 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT
Input gain +6 ~ +50 dB
Input impedance XLR 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)
Phantom power +48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise –121 dBu or less (IHF-A) at +50 dB/150 Ω input
Frequency response −1.0/+0.5 dB: 20 Hz – 20 kHz
  • Multi-track digital recorder with up to 8 tracks of recording.
  • 2.4” Full Color LCD touchscreen display with easy touch and swipe editing
  • User friendly graphic interface with on-board editing capabilities
  • Battery Powered up to 5 hours (4 AA’s)
  • 2 XLR / TRS Combo inputs - with phantom power and HI-Z on input 1
  • Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects, and much more)
  • Built-in compressor for inputs 1 and 2
  • Pan and 3-band EQ for each track
  • Sequence play - for using backing tracks in a live setting
  • Drum loops (150 preloaded)
  • Records directly to SDXC cards
  • Built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function
