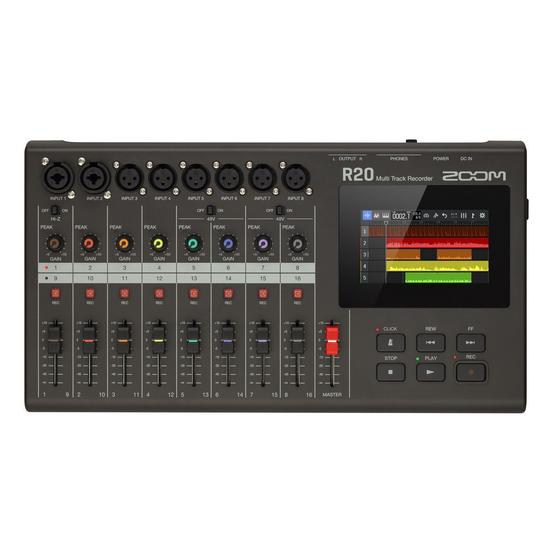

An intuitive, all-in-one tabletop solution for recording, editing, and mixing music, the Zoom R20 Multi-Track Recorder/Interface/Controller merges a DAW-inspired touchscreen interface, color-coded tactile controls, and up to 16 total tracks so that solo artists and full bands alike can produce songs and let their creativity flow without relying on a computer. If a DAW-based workflow is needed, the R20 can serve as an 8x4 USB audio interface for virtually any audio production software.

The R20 is part recording console, part virtual instrument, and part effects unit; it comes loaded with eight preamps, channel strips, drum loops, synth sounds, and digital processing such as compression, EQ, gating, and more. Multiple mics, an electric guitar, headphones, speakers, and even a MIDI keyboard can be hooked up to the R20, making it a capable centerpiece for any home studio or mobile production rig.

A MULTI TRACK RECORDER THAT REDEFINES 'EASY'

With a familiar touchscreen interface, the R20 makes it insanely simple to track, edit and mix your songs, letting you focus on the music.

Connectors XLR/TRS combo jacks × 2 XLR × 6 (XLR: 2 HOT/TRS: TIP HOT
Input gain +6 ~ +50 dB
Input impedance XLR XLR: 3.9 kΩ TRS: 5.3 kΩ/1 MΩ (when Hi-Z is ON, for INPUT 1 only)
Maximum input level +4 dBu (@0 dBFS)
Phantom power +48 V (INPUTS 5–8, switchable in pairs)
Equivalent input noise –121 dBu or less (IHF-A) with +50dB/150Ω input
Frequency response −1.0/+0.5 dB: 20 Hz – 20 kHz
  • 4.3” Full-color LCD touchscreen display
  • Easy-to-use DAW-inspired interface
  • Record up to 16 tracks (8 simultaneously)
  • Eight XLR mic preamps, including two mic/line/instrument combo jacks
  • Hi-Z available on input 1 and 48V phantom power available on inputs 5-8
  • Onboard editing and built-in effects
  • Pre-loaded drum loops
  • Optional BTA-1 Bluetooth enables wireless control via the R20 Control App
  • USB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)
  • Records directly to SDHC cards up to 32GB and SDXC cards up to 1TB
  • New locking-type AC Adapter (ZAD-1220)
  • Up to 24-bit /44.1kHz audio in BWF-compliant WAV
  • Compatible with Guitar Lab software for Mac/Windows PC
