Zoom R4 Multi-Track 4-Track Mixer/Recorder - R4 Multi-Track 4-Track Mixer/Recorder

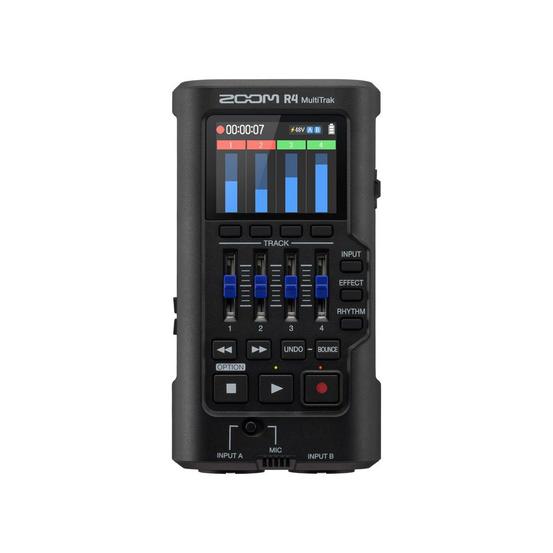

The Zoom R4 Multi-Track 4-Track Mixer/Recorder features 32-bit float recording which captures perfect audio with every take, without the need to set the gain. It records up to 4 tracks which you can mix and then bounce to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers. With a fader for each track and dedicated hardware buttons for the most used functions, you won’t need to menu dive to record your music.

Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.  You can also apply effects to input-A such as amp simulations, delays, distortions and more. It also has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.

The R4 has a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording. It has 2 XLR/TS combo inputs with legendary Zoom preamps. You can plug in microphones, instruments, keyboards, and more.

It is also a powerful 2-in/ 2-out USB audio interface so you can connect it to either your computer or smartphone.

Form FactorHandheld Recorder
Primary Use ApplicationsMusic Recording
Number of Tracks4 (2 Inputs + Stereo Mix)
Number of Input Channels2
Maximum Sampling Rate48 kHz / 32-Bit Float
MicrophoneBuilt-In
Number of Microphone Inputs2 Preamps
Built-In SpeakerNo
Display2" / 5.1 cm Colour LCD
Memory Card SupportmicroSD (1 TB)
Special FeaturesMetronome, Overdubbing
Sample RatesWAV: 48 kHz (Record/Playback)
Bit Depth32-Bit (Floating Point)
Signal Processing & FXAmp Modeling, Delay, EQ, Reverb
Analog I/O2 x Combo XLR-1/4" 3-Pin Female Input
System ConnectionUSB-C
Audio Interface CapabilityStereo Only
Power OptionsBattery, USB Bus Power
Battery Type4 x AA
AC/DC Power AdapterVDC Not Included
Mounting Options1/4"-20 Female (Bottom)
  • 4 Tracks of Recording + Dedicated Bounce Track
  • 2 XLR/TRS combo inputs for guitar, bass, keyboards, microphones and more
  • Built-in Omnidirectional Microphone
  • Dual AD circuitry with 32-bit float recording technology
  • Color LCD Display
  • Built in effects including EQ, Reverb, Compression, and Guitar effects
  • 4 Faders for Volume Control
  • USB Audio Interface Function
  • Runs on 4 AA batteries or external USB-C battery
