Yamaha HS5

Yamaha HS5

Yamaha HS5 - (Single)

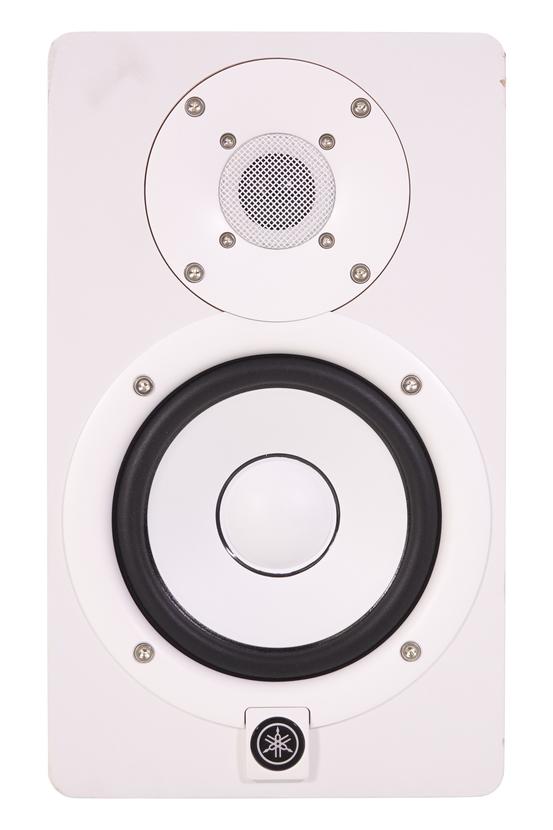

3 ⭐⭐⭐ This Yamaha HS5 has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are signs of wear, they do not affect performance. The photos show the actual speaker, with any noticeable marks highlighted for transparency. NOTES: A few scuff marks and scratches Includes: IEC Mains Cable

Loading product options

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.

  • 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
  • 54Hz - 30kHz frequency response
  • 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
  • ROOM CONTROL and HIGH TRIM response controls
  • XLR and TRS phone jack inputs accept balanced or unbalanced signals



HS5
General specifications
Speaker type 2-way bi-amp powered studio monitor
Frequency range (-10dB) 54Hz - 30kHz
Components LF 5" cone
HF 1" dome
Crossover 2kHz
Output power 70W (LF:45W, HF:25W)
I/O connectors XLR3-31 type (balanced), PHONE (balanced)
Power consumption 45W
Shape Bass-reflex type
Cabinet material MDF
Dimensions W 170mm (6.7")
H 285mm (11.2")
D 222mm (8.7")
Net weight 5.3kg (11.7 lbs.)
Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)
Frequency response (-10dB) -
Frequency response (-3dB) -
Input sensitivity -
Indicators -
Flying and mounting hardware -
Accessories -
Options -
