Sennheiser EW IEM G4 Wireless Monitor System

Sennheiser EW IEM G4 Wireless Monitor System

Sennheiser EW IEM G4 Wireless Monitor System

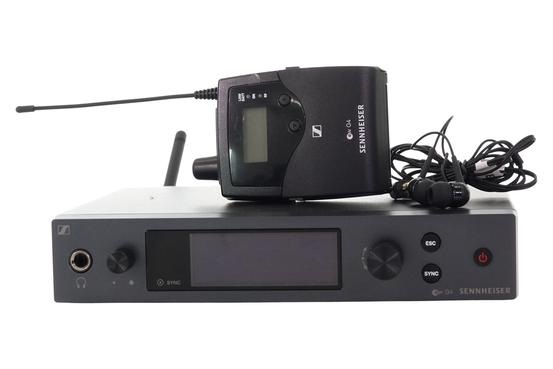

4 ⭐⭐⭐⭐ This Sennheiser EW IEM G4 Wireless Monitor System has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual transmitter, ensuring transparency and trust in our process. Includes: Mains Power Supply NOTES: Requires 2 x AA batteries . Not Supplied.

The SR IEM G4 Stereo Transmitter from Sennheiser is an addition to their evolution series of wireless systems. It features wideband FM stereo modulation and can be used when paired with a companion receiver as part of a wireless RF monitoring system for live stage, theater, and rehearsal applications.

The stereo transmitter is equipped with 1680 frequencies tunable in 25 kHz steps and has 20 fixed frequency banks, with up to 16 compatible frequency presets and 6 user banks with up to 16 user-programmable frequencies. The receiver's menu-driven backlit OLED display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, equalizer settings, lock status, and input sensitivity. An auto-lock feature is provided to prevent settings from being accidentally altered.

Additionally, associated receivers can be synchronized with the transmitter via an integrated infrared interface. This transmitter is built with two electronically balanced XLR/1/4" combo sockets, a 1/4" headphone output with headphone volume control, an Ethernet port (RJ-45 for remote network-based monitoring), and a 50 Ohm BNC-type antenna input. Finally, it has a rugged metal housing and includes a 12 V power supply and a GA 3 rackmount kit.

Receiver
Modulation Wideband FM stereo (MPX pilot tone)
Frequency Band G: 566 to 608 MHz
Receiving Frequency Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 16 factory-preset channels, no intermodulation
6 frequency banks with up to 16 programmable channels
Switching Bandwidth up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
MPX Pilot Tone 19 kHz/ ±5 kHz (frequency/deviation)
Frequency Stability ±10 ppm
Antenna Output BNC socket, 50 Ohms
RF Output Power @ 50 Ohms Switchable:
Low: Typical 10 mW
Standard: Typical 30 mW
High: Typical 50 mW
Compander Sennheiser HDX
AF Frequency Response 25 Hz to 15 kHz
AF Input Electronically Balanced
2 x XLR-1/4" / 6.3 mm balanced combo jack
Balanced AF in L +Mono
Balanced AF in R
Maximum Input Level +22 dBu
Total Harmonic Distortion (THD) ≤ 0.9 %
Signal to Noise Ratio Approximately >90 dB (nominal load and peak deviation)
AF Output 1/4" / 6.3 mm stereo jack socket balanced
Loop out balanced L, loop out balanced R
Temperature Range 14 to 131°F / -10 to 55°C
Power Supply 12 VDC
Current Consumption Maximum 350 mA
Dimensions (W x L x H) 8.0 x 8.3 x 1.7" / 202 x 212 x 43 mm
Weight 2.2 lb / 980 g
Packaging Info
Package Weight 5.65 lb
Box Dimensions (LxWxH) 16.1 x 13.8 x 5.65"
