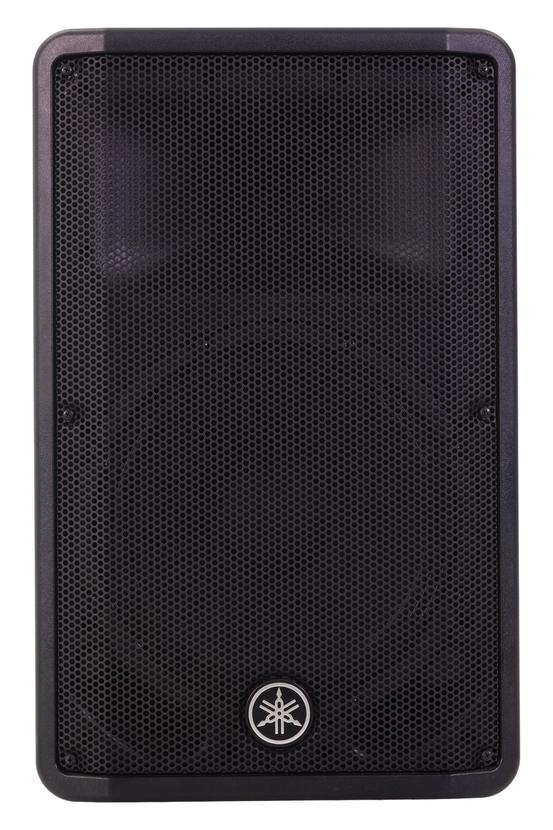

4 ⭐⭐⭐⭐ This Yamaha DBR12 has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual speaker, ensuring transparency and trust in our process. Includes: IEC Mains Cable
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency range (-10dB) | 52Hz – 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 131dB SPL | |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan cooling, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 74W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (Bottom x 1) | |
| Dimensions | W | 376mm (14.8") |
| H | 601mm (23.7") | |
| D | 348mm (13.7") | |
| Net weight | 15.8 kg (34.8 lbs) | |
| Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) | |
