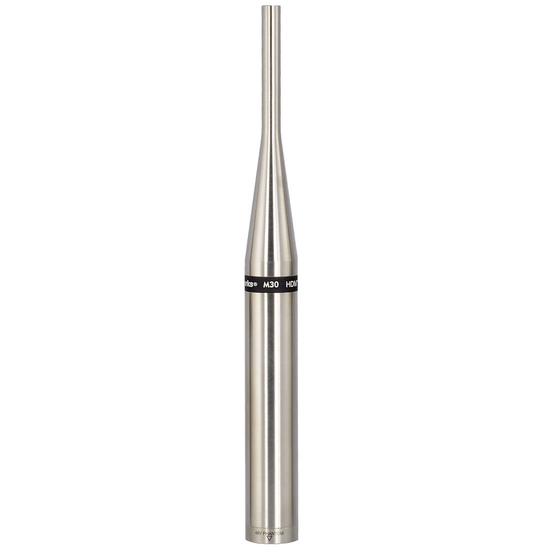

Earthworks Audio M30 Measurement Microphone (3Hz - 30kHz)

Earthworks Audio M30 Measurement Microphone (3Hz - 30kHz)

Earthworks Audio M30 Measurement Microphone (3Hz - 30kHz)

Loading product options

Used on countless full-scale concert tours, as well as in scientific research laboratories, tropical rainforests, and rocket testing facilities, the M30 has proven to be a lab-grade audio instrument that can handle any environment.

A flat frequency response that extends from 3Hz to 30kHz, an exceptionally consistent omnidirectional polar response, 140dB SPL rating without distortion and no handling noise.

Immune to most temperature and atmospheric fluctuations, the M30 delivers reliable and repeatable results in any environment. The M30 works with any high-quality FFT-based real-time audio system measurement software, like SMAART™, SIM™, REW™, Electroacoustics Toolbox™, FuzzMeasure™ and others, as well as for use in PA system alignment and loudspeaker design.

Every M30 is individually hand-tuned and tested and is delivered with its own printed frequency response chart. An Electronic Calibration File (ECF) is generated for each microphone during final testing, and can be downloaded free of charge after product registration.

Features
  • Frequency response: 3Hz to 30kHz
  • Polar pattern: Omnidirectional
  • Sensitivity: 34mV/Pa (-29dBV/Pa)
  • Power requirements: 24-48V Phantom, 10mA
  • Max acoustic input: 140dB SPL
  • Output XLR: (pin 2+)
  • Output impedance: 65? balanced (between pins 2 & 3)
  • Min output load: 600? between pins 2 & 3
  • Noise: 20dB SPL equivalent (A weighted)
  • Dimensions: (L x D) 229mm x 22mm (9.0 x .860 inches)
  • Weight: .5 lb. (225g)
