Yamaha DBR12

The DBR12 offers 1,000 watts of power, a 12" low frequency driver and crystal clear high frequency driver, a convenient mixer and versatile DSP processing.

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

Yamaha DBR12

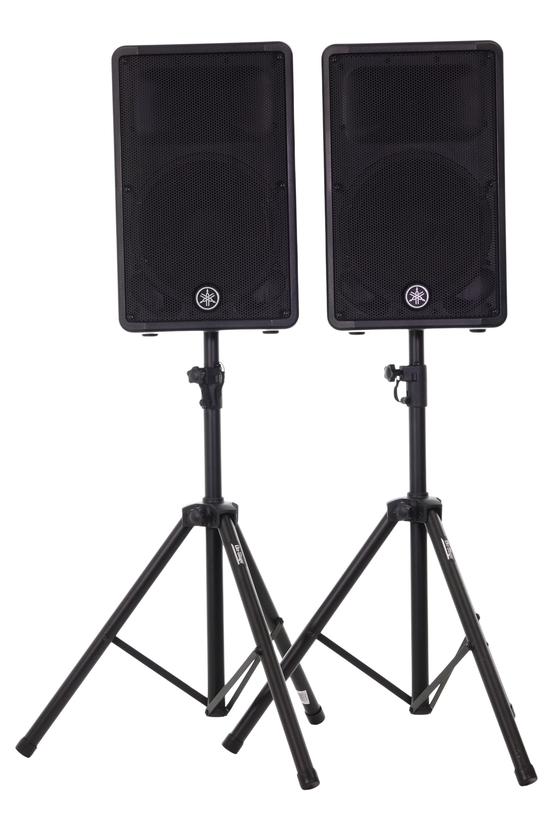

Yamaha DBR12 - Powered Speaker Pair + Stands

3 ⭐⭐⭐ This Yamaha DBR12 Powered Speaker Pair + Stands has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are signs of wear, they do not affect performance. The photos show the actual powered speakers, with any noticeable marks highlighted for transparency. Notes: A few scratches and Scuff Marks Includes: Speaker Stand x 2

General specifications

Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz – 20kHz
Nominal coverage H 90°
V 60°
Components LF Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis) 131dB SPL
I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 74W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Finish Black
Handle Side x 2
Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions W 376mm (14.8")
H 601mm (23.7")
D 348mm (13.7")
Net weight 15.8 kg (34.8 lbs)
Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
