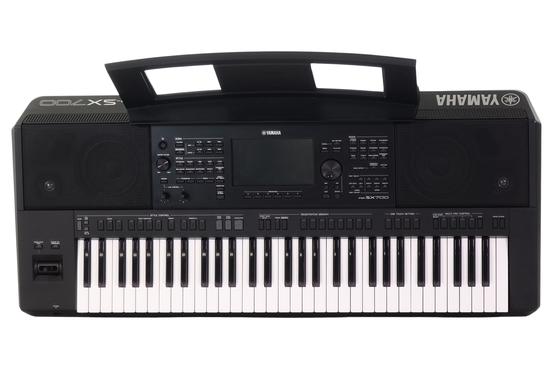

4 ⭐⭐⭐⭐ This Yamaha PSRSX700 Arranger Workstation Keyboard has been thoroughly tested and serviced by our music experts to ensure perfect functionality. While there are minor signs of wear, they do not affect performance. The photos show the actual keyboard, ensuring transparency and trust in our process. Includes: Power supply and music sheet rest.
Take your performance to a whole new dimension with the PSR-SX. Replacing the hugely successful PSR-S series, the PSR-SX700 is the new generation in Digital Workstation sound, design and user experience. These instruments will inspire and intensify your musical performance and enjoyment.
Setting new standards in high-end Digital Workstation sound, design and user experience. The PSR-SX has been meticulously crafted to intensify your performance and enjoyment.
Music offers unlimited possibilities, and the PSR-SX is equipped to support your adventures to the boundaries of creativity. With a completely redesigned user interface, new assignable functions, joystick and Live Controllers, you can tailor the instruments functions and sound, wherever your musical journeys take you.
Perfect for songwriting, the PSR-SX is packed with rhythmic patterns (called “Styles”) spanning many music genres, making it ideal for creating the accompaniment to your musical ideas and an invaluable inspiration for your next composition or arrangement. Together with a tremendous range of expressive sounds, the PSR-SX is your ultimate musical partner.
| PSR-SX700 | ||
|---|---|---|
| Color/Finish | ||
| Body | Color | Black |
| Size/Weight | ||
| Dimensions | Width | 1017 mm |
| Height | 139 mm | |
| Depth | 431 mm | |
| Weight | Weight | 11.5 kg |
| Control Interface | ||
| Keyboard | Number of Keys | 61 |
| Type | Organ (FSB), Initial Touch | |
| Touch Response | Normal, Soft 1, Soft 2, Hard 1, Hard 2 | |
| Other Controllers | Joystick | Yes |
| Control Knobs | 2 (assignable) | |
| Display | Type | TFT Color Wide VGA LCD |
| Size | 800 x 480 dots (7 inch) | |
| Touch Screen | Yes | |
| Color | Color | |
| Language | English, German, French, Spanish, Italian | |
| Panel | Language | English |
| Voices | ||
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.) | 128 |
| Preset | Number of Voices | 986 Voices + 41 Drum/SFX Kits |
| Featured Voices | 131 S.Art!, 30 Mega Voice, 31 Sweet! Voices, 74 Cool! Voices, 89 Live! Voices, 24 Organ Flutes! | |
| Compatibility | XG | Yes (for Song playback) |
| GS | Yes (for Song playback) | |
| GM | Yes | |
| GM2 | Yes | |
| Expandability | Expansion Voice | Yes (approx. 400 MB) |
| Editing | Voice Set | |
| Part | Right 1, Right 2, Right 3, Left | |
| Effects | ||
| Types | Reverb | 59 Presets + 30 User |
| Chorus | 106 Presets + 30 User | |
| DSP | 322 Presets + 30 User | |
| Insertion Effect | 1-5: 322 Presets + 30 User | |
| Master Compressor | 5 Presets + 30 User | |
| Master EQ | 5 Presets + 30 User | |
| Part EQ | 28 Parts | |
| Others | Mic/Guitar effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1 | |
| Arpeggio | Yes | |
| Accompaniment Styles | ||
| Preset | Number of Preset Styles | 400 |
| Featured Styles | 353 Pro Styles, 34 Session Styles, 10 DJ Styles, 3 Free Play | |
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard | |
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 | |
| Other Features | One Touch Setting (OTS) | 4 for each Style |
| Style Section Reset | Yes | |
| Expandability | Expansion Style | Yes (Internal Memory) |
| Compatibility | Style File Format, Style File Format GE | |
| Songs | ||
| Preset | Number of Preset Songs | 5 Sample Songs |
| Recording | Number of Songs | Unlimited (depends on the drive capacity) |
| Number of Tracks | 16 | |
| Data Capacity | Approx. 3 MB/Song | |
| Recording Function | Quick Recording, Multi Recording, Step Recording | |
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF |
| Recording | SMF (Format 0) | |
| Multi Pads | ||
| Preset | Number of Multi Pad Banks | 226 Banks x 4 Pads |
| Audio | Audio Link | Yes |
| Functions | ||
| Registration | Number of Buttons | 8 |
| Control | Registration Sequence, Freeze | |
| Playlist | Number of Records | 2500 (max.) Records per Playlist file |
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo |
| Search | Registration Bank | |
| Demo/Help | Demonstration | Yes |
| Overall Controls | Metronome | Yes |
| Tempo Range | 5 - 500, Tap Tempo | |
| Transpose | -12 – 0 – +12 | |
| Tuning | 414.8 – 440 – 466.8 Hz | |
| Octave Button | Yes | |
| Scale Type | 9 types | |
| Miscellaneous | Direct Access | Yes |
| Text Display Function | Yes | |
| Wallpaper Customization | Yes | |
| Display Out | Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website. | |
| Voices | Harmony/Echo | Yes (with Arpeggio) |
| Panel Sustain | Yes | |
| Mono/Poly | Yes | |
| Voice Information | Yes | |
| Styles | Style Creator | Yes |
| Style Recommender | Yes | |
| OTS Information | Yes | |
| Songs | Song Creator | Yes |
| Score Display Function | Yes | |
| Lyrics Display Function | Yes | |
| Multi Pads | Multi Pad Creator | Yes |
| Audio Recorder/Player | Recording Time (max.) | 80 minutes/Song |
| Recording | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo) | |
| Playback | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) | |
| Lyrics Display Function | Yes (.mp3 only) | |
| Time Stretch | Yes | |
| Pitch Shift | Yes | |
| Vocal Cancel | Yes | |
| Storage and Connectivity | ||
| Storage | Internal Memory | Yes (approx. 1 GB) |
| External Drives | USB Flash Memory (via USB to DEVICE) | |
| Connectivity | Headphones | Yes |
| FOOT PEDAL | 1 (SUSTAIN), 2 (ARTICULATION), Function Assignable | |
| Microphone | Microphone/Guitar x 1 | |
| MIDI | IN, OUT | |
| AUX IN | Stereo mini jack | |
| LINE OUT | MAIN OUTPUT (L/L+R, R) | |
| USB TO DEVICE | Yes | |
| USB TO HOST | Yes | |
| Amplifiers and Speakers | ||
| Amplifiers | 15 W x 2 | |
| Speakers | 13 cm x 2 + 5 cm x 2 | |
| Power Supply | ||
| Power Supply | PA-300C or an equivalent recommended by Yamaha | |
| Power Consumption | 21 W | |
| Auto Power Off Function | Yes | |
| Accessories | ||
| Included Accessories | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor(may not be include depending on your area. Check with your Yamaha dealer.) | |
